84-89 Direct Fit Aluminum Radiator
This item does not qualify for promotional or retail discounts.

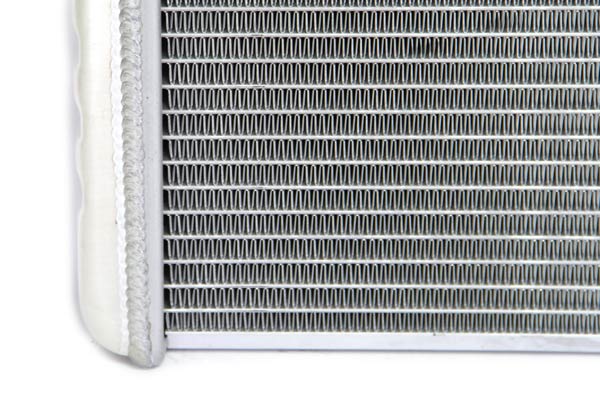

Direct Fit radiators are completely manufactured and assembled right here in the United States. Along with that comes the quality that you would expect from a company that takes pride in turning out Corvette radiators. Each Direct Fit Corvette radiator begins life as an aluminum core with two 1" wide cooling tubes. This configuration more than doubles the cooling capacity by increasing the "tube to fin" contact area over replacement 4-row copper radiator. This can only be achieved with an aluminum radiator since the aluminum material does not dramatically affect the radiators weight. Tanks are press formed and inlet/outlets are correctly configured for a drop-in installation. Each core is then brazed in a controlled atmosphere furnace; which eliminates the need for epoxy, ensuring leak free, and trouble free service for many years to come.
Note: First design AC condensers used in 1984 & early 1985 will have to be upgraded to the 1986 design in order to allow clearance for this radiator due to it's thicker design. This radiator includes its own mount cushions as the factory 1984-1989 Corvette mounting cushions will not work with the Direct Fit aluminum radiator.
Dewitts aluminum radiators are warrantied to be free from defects in materials and workmanship for as long as you own the Corvette in which it was originally installed. This warranty is extended only to the first retail purchaser of any such radiator. Proof of purchase must be provided in the way of a sale receipt from DRI or an authorized dealer. If the radiator is used in any racing application this warranty is considered null and void.
Radiators used without an adequate proportion of premium quality antifreeze coolant and distilled water are not covered by this warranty. DRI radiators require a correct proportion of quality coolant, which contains aluminum corrosion inhibitors in the formula and distilled water. All Corvette cooling systems must include a radiator pressure cap with the proper pressure rating. Distilled water and premium antifreeze must be used with all Corvette aluminum radiators!
Dewitt Item Number 32-1139084A
This item is proudly Made in the USA| Generation | C4 |
|---|---|
| Model Year | 1984, 1985, 1986, 1987, 1988, 1989 |
- Manufacturer Part Number: 32-1139084A
-
WARNING: Cancer and Reproductive Harm - www.p65warnings.co.gov
Dewitt
Based in Michigan, DeWitts Radiator is the only aftermarket radiator manufacturer in the US which owns an aluminum Nocolok blazing furnace. With a twelve-person crew, DeWitts builds custom and direct fit radiators for 1955-present Corvettes from start to finish at their Howell, MI plant. No epoxy is used in the making of their radiators, and their construction methods eliminate seams and possible leak points. Their Lifetime Warranty is industry leading, and Zip only recommends DeWitts Radiators to our customers.
