14-19 aFe Control PFADT Series Featherlight Adjustable Coilover System
Item #:
SU-1392
By:
aFe
$3,643.99
No Discount

This item does not qualify for promotional discounts or wholesale pricing.

Out Of Stock - This item is not available to ship but can be ordered. Most out of stock items are available to ship within 7-10 days.
-
+
Related To This Item

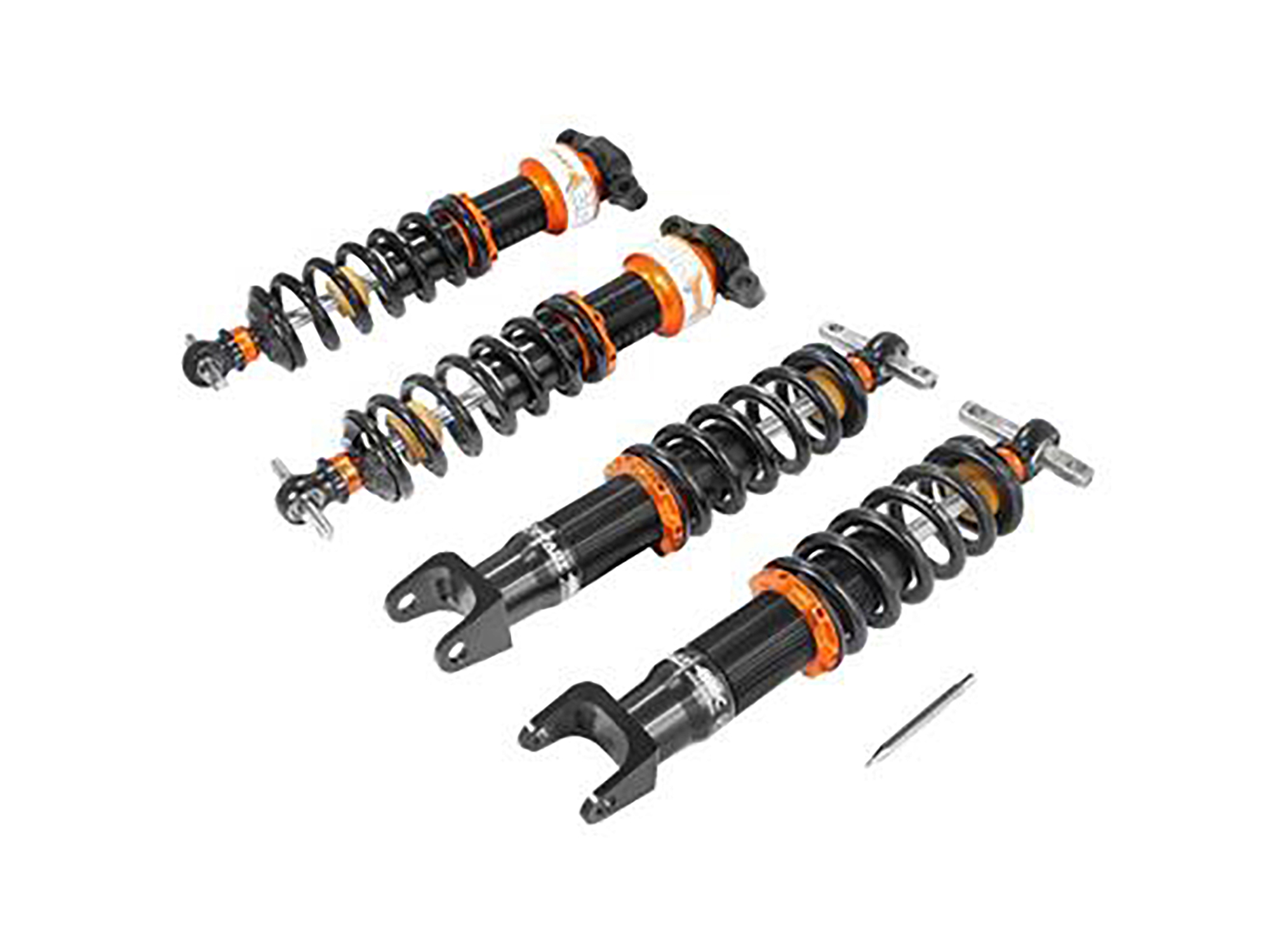

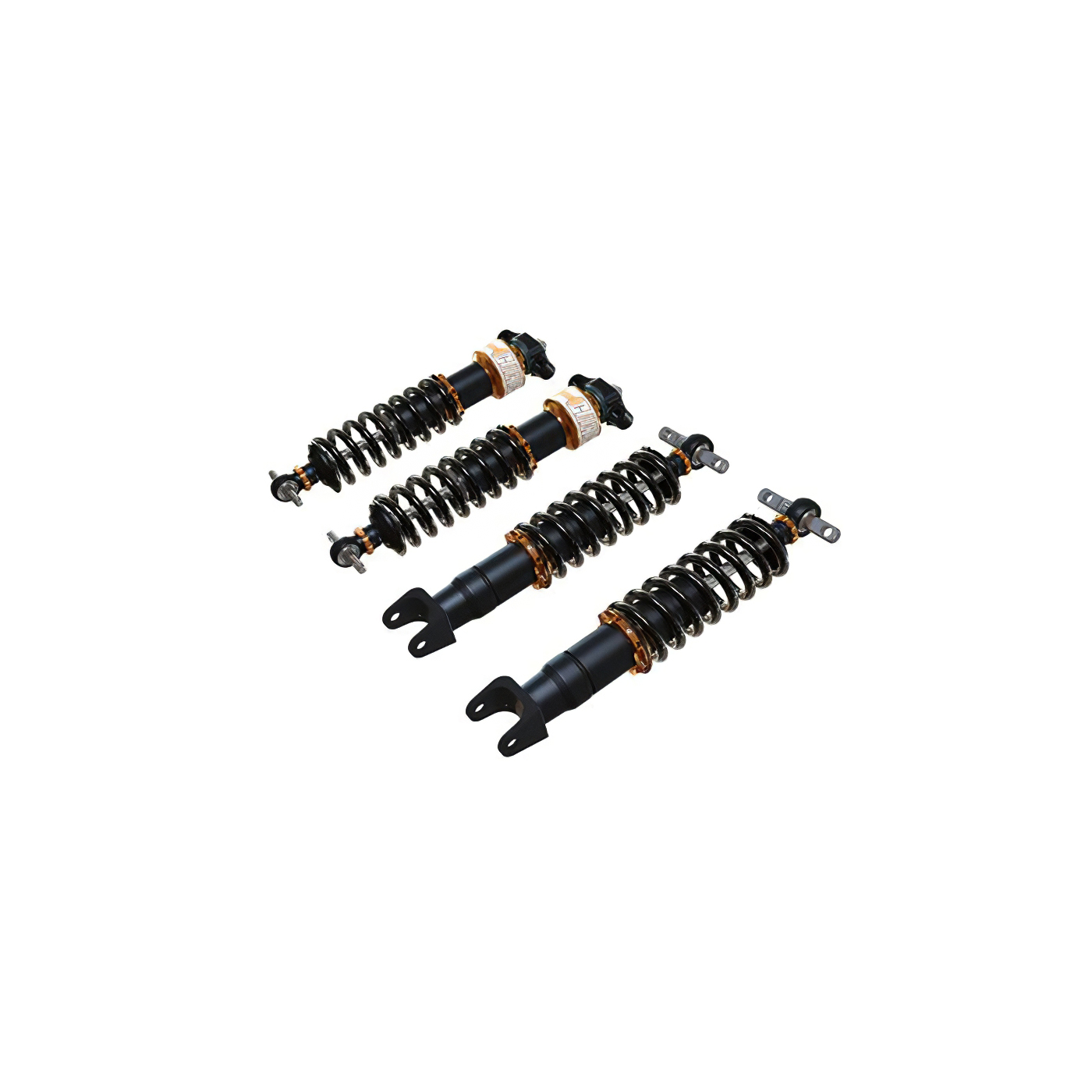

aFe Control is proud to release the PFADT Series Featherlight Adjustable Coilover System for the 2014-2019 Corvettes. Designed as a complete solution - Featherlight Coilovers will allow you to remove the transverse leaf springs and OE shocks on your C7 Corvette yielding a true independent suspension which eliminates the crosstalk and harsh ride that OEM suspensions are known for.

Both ride height and damping are easily adjustable allowing for fine tuning your Corvettes stance and ride quality. Packed with features, Featherlight Coilovers are precision CNC machined from 6061 T6 hard anodized aluminum . The mono-tube construction utilizes a floating piston to separate oil and nitrogen gas, allowing for predictable handling and a consistent feel. Spring rates have been optimized for street and track use.

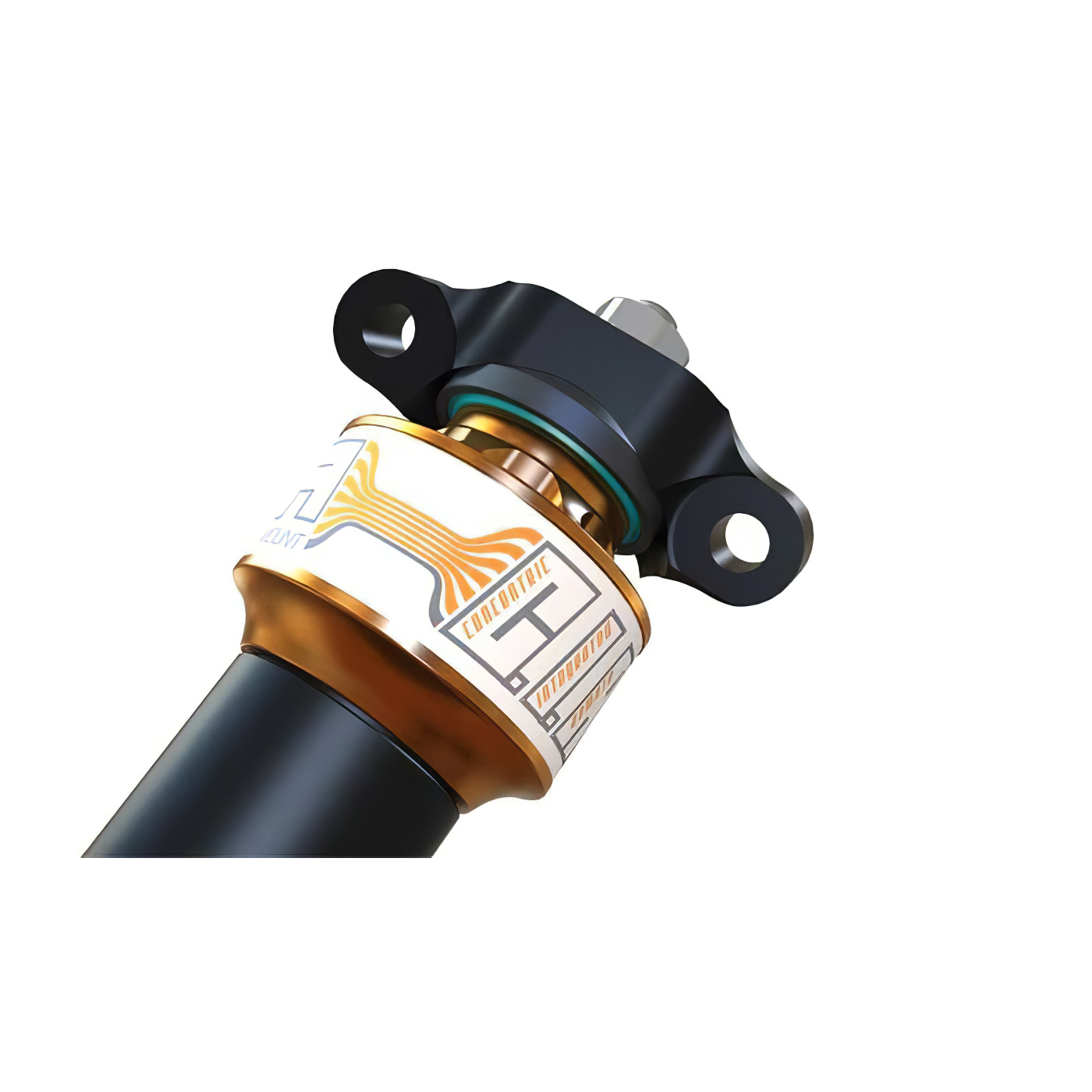

The front coilover features a inverted design placing the damping adjuster, on the bottom of the shock, allowing for quick, easy adjustment. The CIRC (Concentric Integrated Remote Canister) System more than triples the gas volume over a standard coilover resulting in consistent operation over a wide temperature range and throughout the stroke. Integrated into the CIRC head, is the BOA (Ball on Axis) upper mount, allowing full articulation of the front suspension.

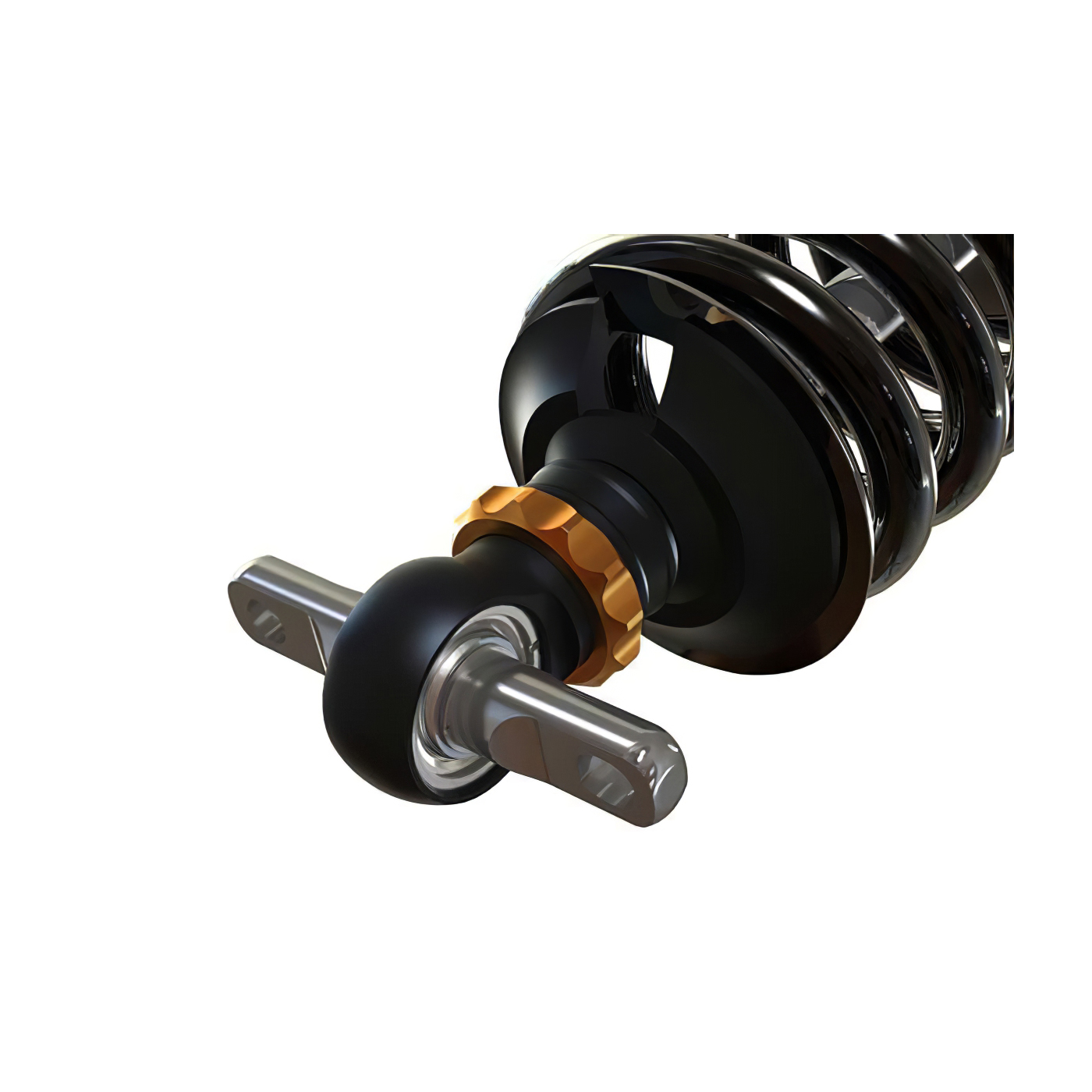

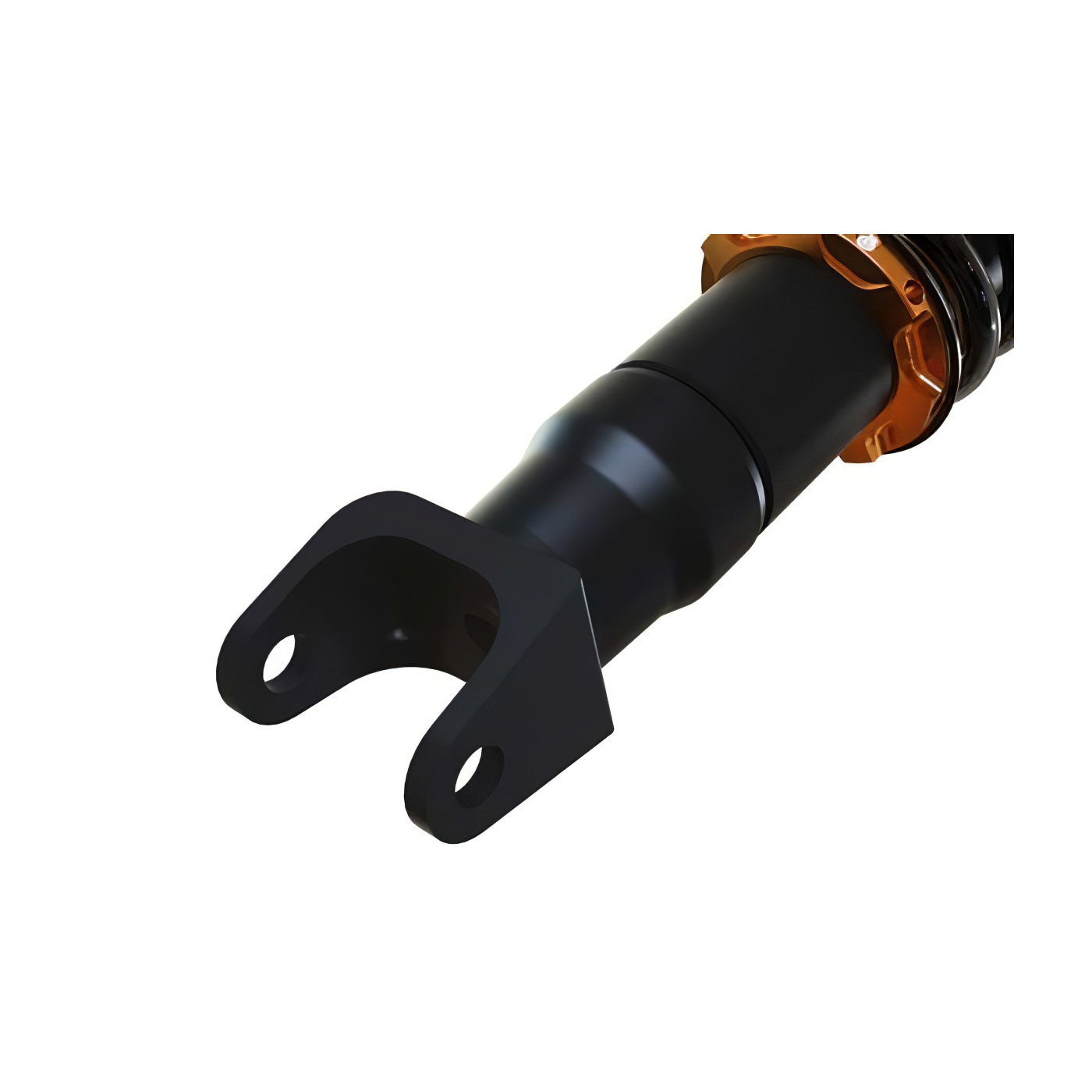

In the rear, the coilover uses an aerospace grade monoball with a 17-4PH stainless steel crosshaft and a lightweight CNC milled 6061-T6 clevis to attach directly to the OE mounting points for simplicity and strength. The adjuster knob is on the top of the assembly for ease of use. Since the coilovers employ double digressive valve technology, the easy touch, rotary knob will adjust both compression and rebound in one device.

24 distinct settings on the front and rear shocks allowing for settings to accommodate comfortable street, all the way up to track settings. Elevate your driving experience with the comfort, precision, and excitement of aFe Control PFADT Series Featherlight Adjustable Coilovers. Check out these Features:

  • Featherlight Coilovers are ride height adjustable, as well as damping adjustable for rebound and compression
  • Lightweight hard anodized 6061 T6 aluminum bodies, yield high strength, while still maintaining a lightweight design
  • Mono-Tube construction utilizes an internal floating piston to separate oil and gas allowing for more predictable handling and a consistent feel
  • BOA (Ball on Axis) front upper mount system is a completely sealed mono-ball design that allows articulation required for the Corvette suspension resulting in a better ride and quiet operation
  • CNC Machined, hardened, 17-4 PH stainless cross shafts utilize mounts and are retained by a mono ball and snap rings

aFe Control Suspension products are engineered and manufactured in our Corona, California manufacturing facility.

aFe Item Number 430-401004-N

This item is proudly Made in the USA

Model Years

More Information
Generation C7
Model Year 2014, 2015, 2016, 2017, 2018, 2019
Additional Item Information
  • UPC: 802959000342
  • Manufacturer Part Number: 430-401004-N
  • P65 Warning WARNING: Cancer and Reproductive Harm - www.p65warnings.co.gov

aFe

Advanced FLOW Engineering (aFe) is all about moving air through your engine as effectively as possible. From Jeeps to Corvettes, aFe develops more than just cold air intakes and air filters. Their 160,000 square feet of facilities in Southern California house their corporate headquarters, manufacturing facility, R&D lab, and warehouse. Their complete product line includes: fluid filters, intake manifolds, turbochargers, exhaust, programming systems, and throttle body spacers. Zip uses aFe products because we believe their products are among the best available for the Chevrolet Corvette.
