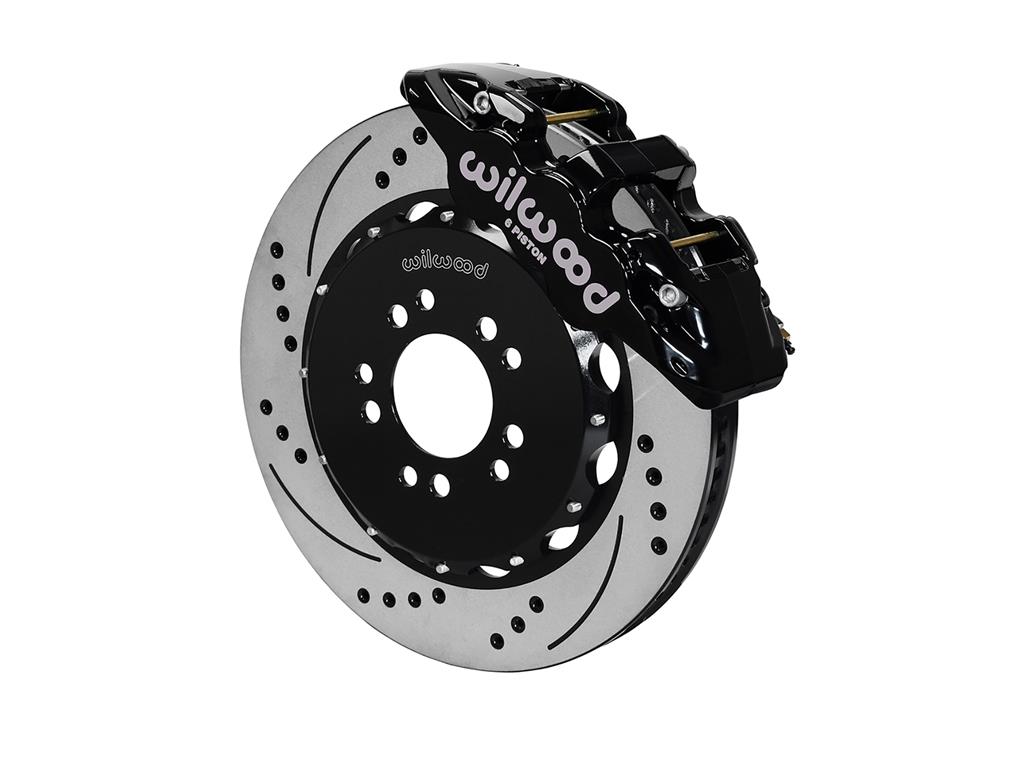

14-19 Wilwood AERO6 Front Brake Kit w/14.25" GT Slotted Rotors
Item #:
DB-990
By:
As low as $2,305.99
No Discount

This item does not qualify for promotional discounts or wholesale pricing.

Additional Shipping Charges: $34.50

This item requires a of $34.50 that will be added to the shipping amount during checkout. This charge includes UPS Peak Season Surcharge Rates.

Choose an Option for Stock Status
-
+
Related To This Item

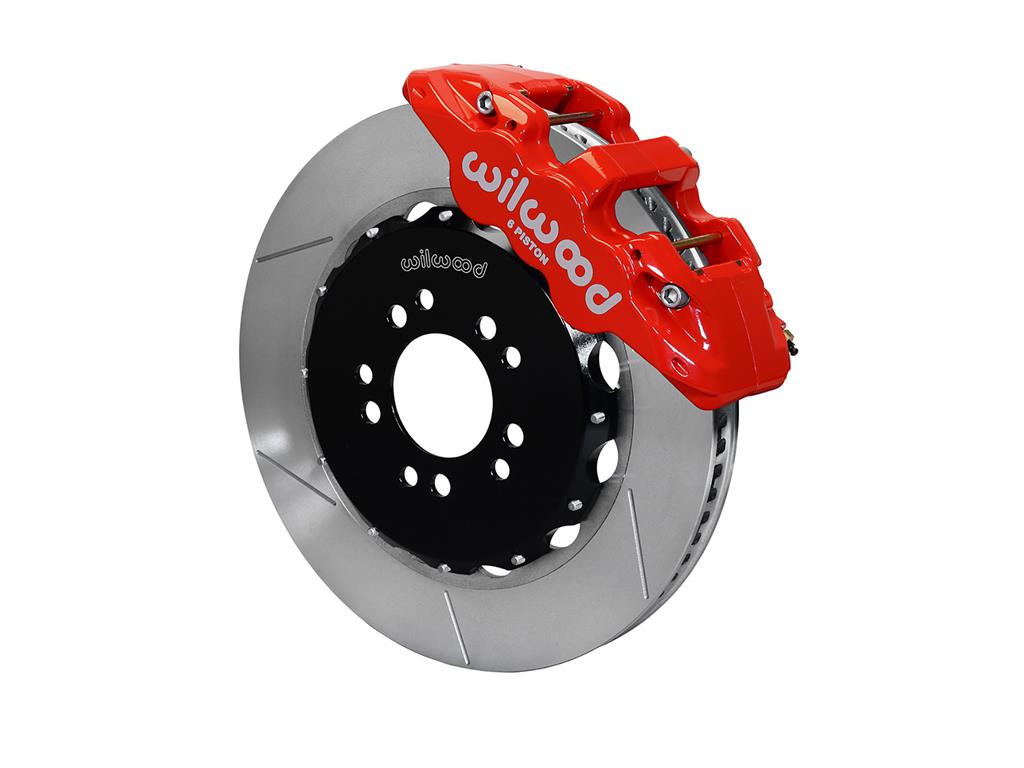

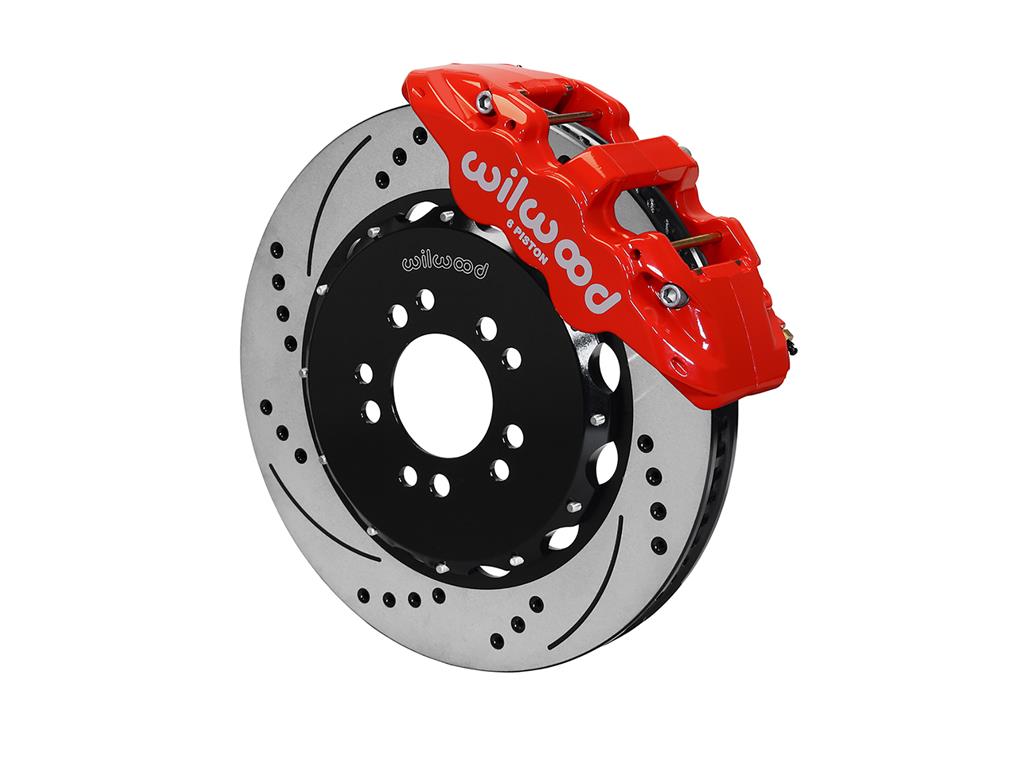

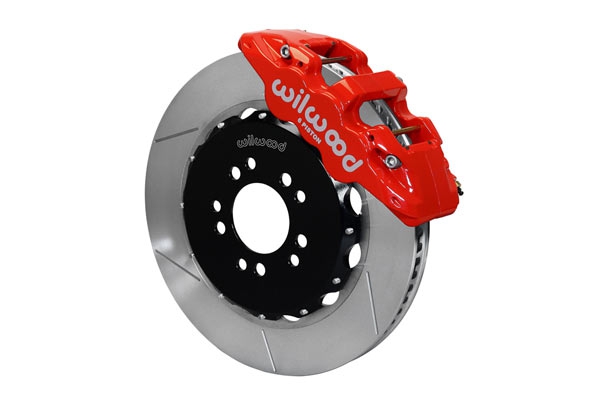

Wilwood's forged aluminum Aerolite radial mount calipers and 14.25" diameter Spec 37 alloy directional vane two-piece rotors are combined in an all new brake upgrade packages for the 2014-2019 C7 Corvette Stingray. Six piston front calipers and four piston rears are available in gloss black or red. Available with SRP drilled and slotted performance rotors with BP-10 compound metallic composite Smart Pads, or GT competition series rotors with face slots only and BP-20 compound pads, deliver high-torque stopping power, optimized cooling efficiency, and high-tech styling for the street or track. Take your pick!

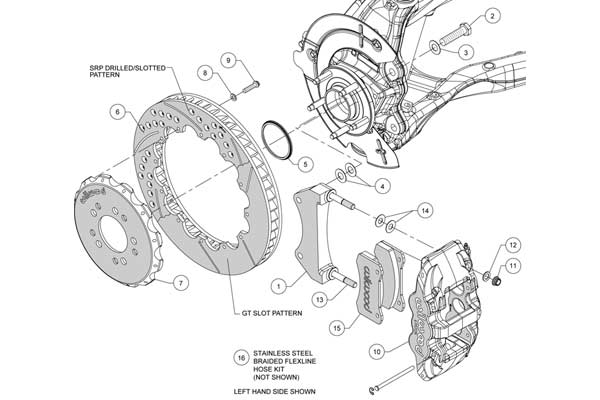

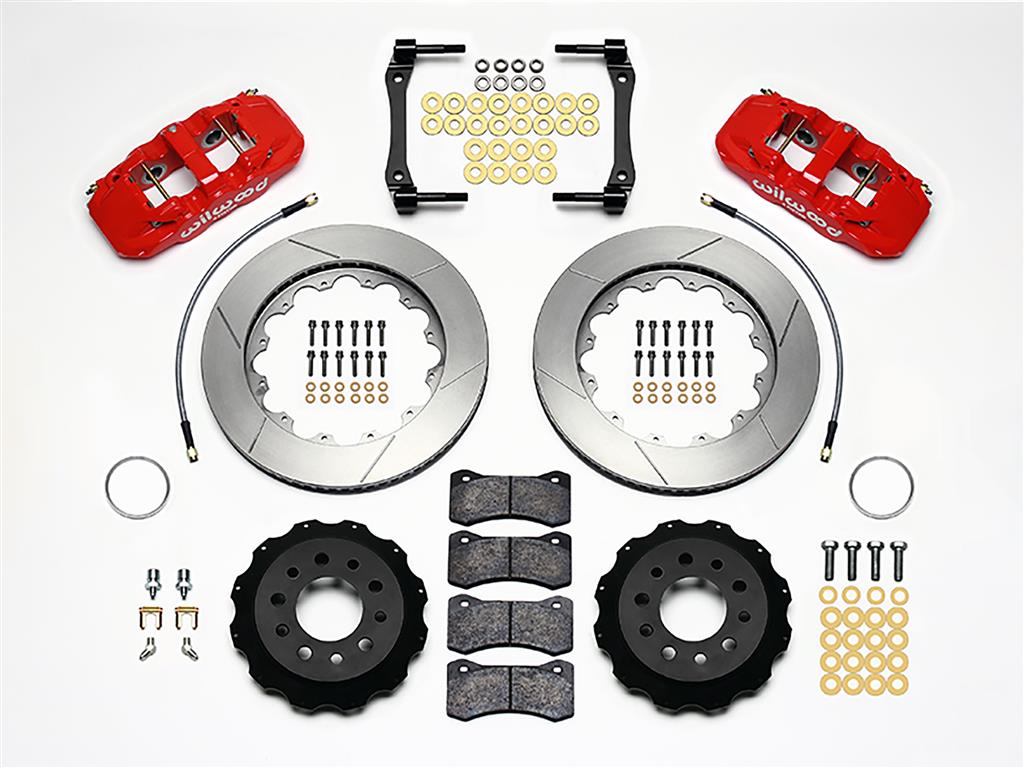

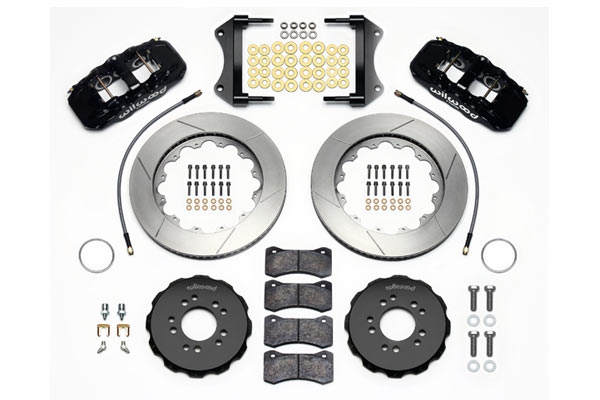

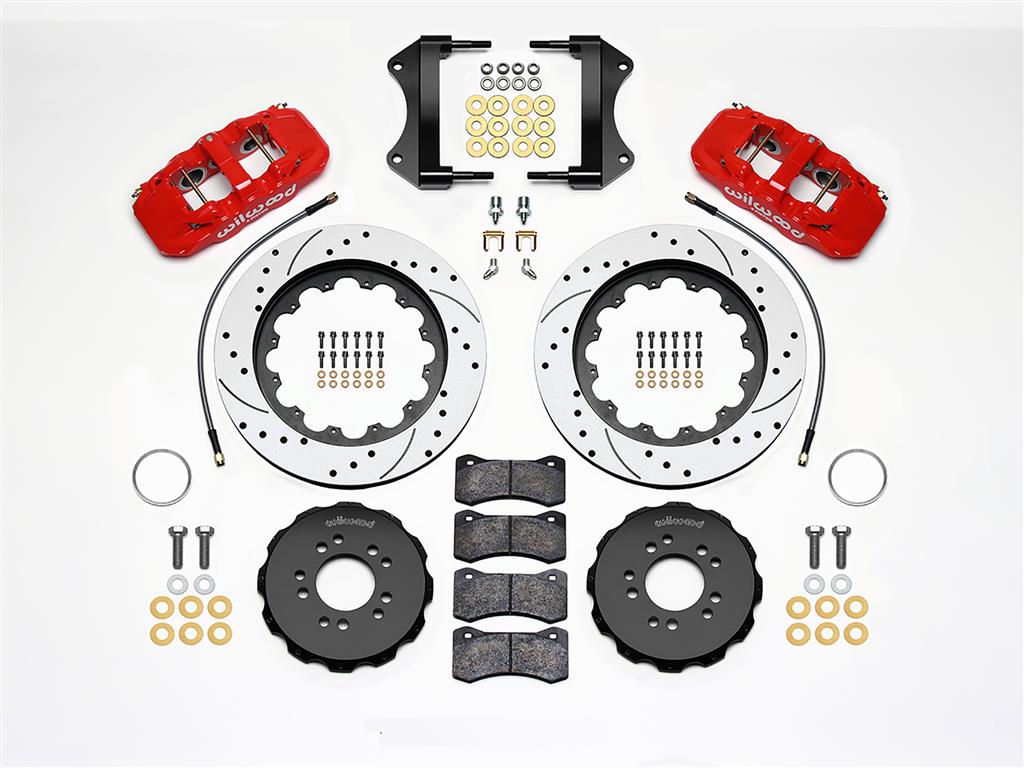

Each kit includes all necessary hardware with DOT approved stainless steel braided flex lines, and a detailed instruction guide for an easy bolt-on installation.

Check out these features on the 2014-2019 Corvette Aerolite 6R Front Brake Package:

  • Aerolite 6-piston radial mount forged aluminum calipers

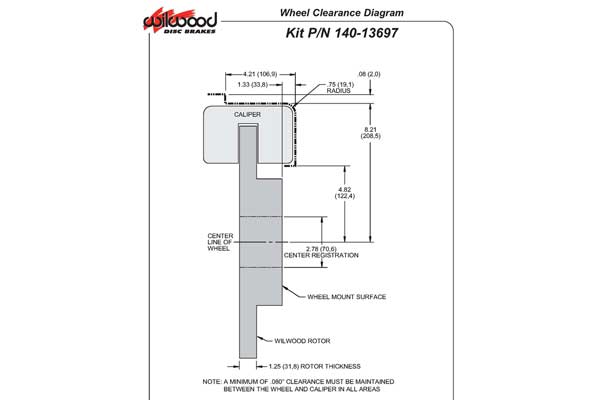

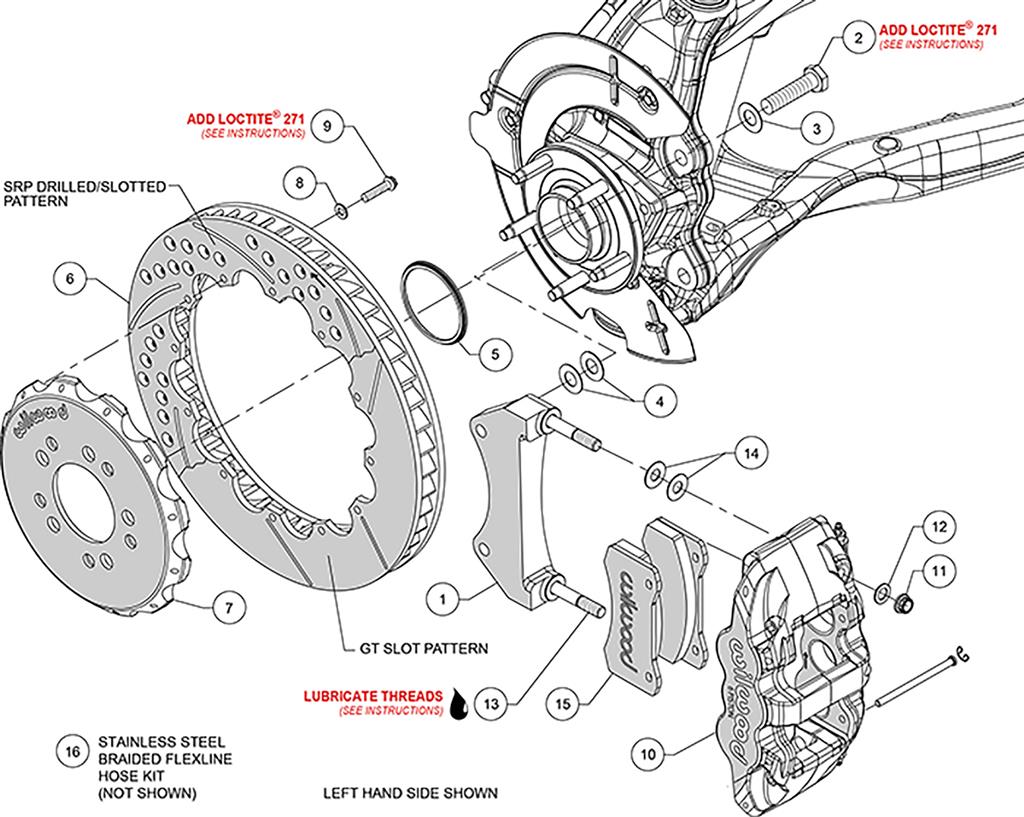

  • Fits inside OEM 18" wheels (see diagram for clearance requirements)
  • 14.25" x 1.25" staggered vane Spec 37 GT slotted only 2-piece brake rotors - designed for street and track use
  • BP-20 Dual-Sport brake pads
  • Calipers available in gloss black or red
  • DOT approved stainless steel braided flex lines included
  • Bolt-On kit includes all necessary hardware and detailed installation guide

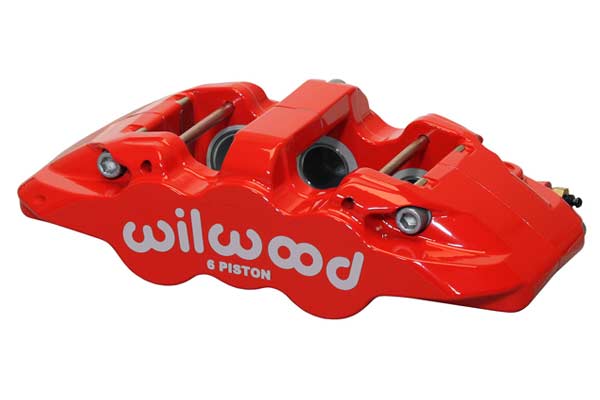

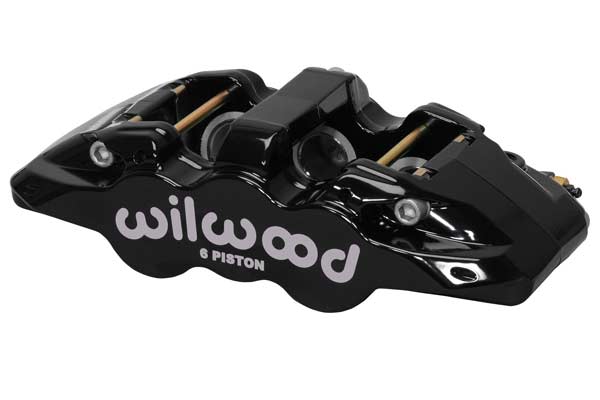

AERO6 forged six-piston caliper delivers heavy duty stopping power for the road or track. The caliper incorporates race technology into a body design with widespread adaptability. Radial mounting, multiple options for piston volume, and a rotor diameter ranging from 12.88" to 15.00" give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The body of Aero series caliper is stress-flow forged from a premium grade aluminum alloy billet. Stress-flow forging realigns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. The results are a caliper with superior clamping efficiency and ultimate strength against fatigue, stresses, and distortion under load.

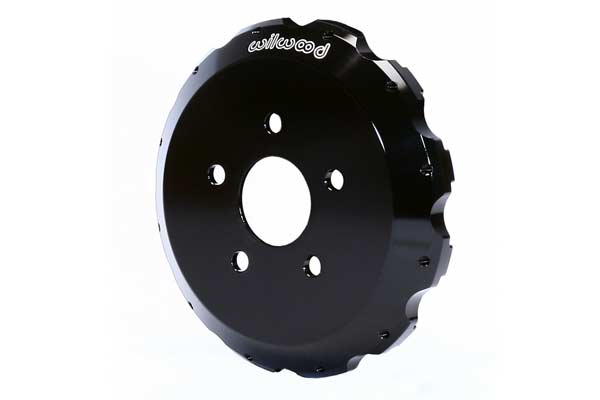

GT Series Big Brake Short Offset rotor hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Threaded hole hats may also be used with T-Nuts or bobbins designed for use with specially machined slotted hole dynamic mount rotors. When used in conjunction with matched Wilwood rotor hardware kits, GT hats provide solid, reliable performance in the most demanding conditions.

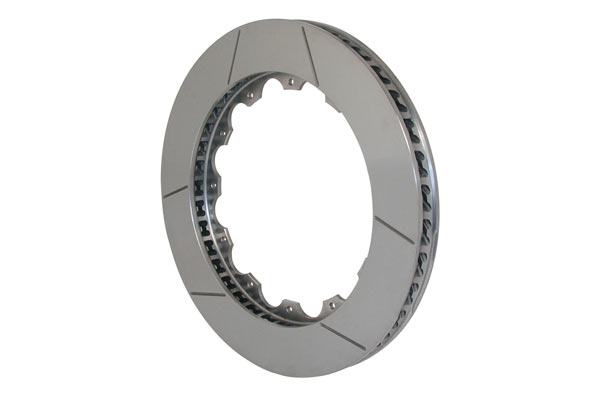

Wilwood's GT 60 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest, vibration free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition.

Wilwood has been expertly designing and manufacturing high-performance disc brakes in the USA since 1977. Engineered and rigorously tested for the track, Wilwood brakes provide unsurpassed quality and performance with sleek, lightweight designs. Wilwood has dominated the motorsports arena for decades, making their street market brakes among the most technologically advanced around.

Wilwood Item Number 140-13697, 140-13697-N, 140-13697-R

This item is proudly Made in the USA

Installation difficulty: 3

Our technicians have determined that the installation difficulty level of this item is a 3 on a scale of 1-5. Read more about our install ratings here.

Model Years

More Information
Generation C7
Model Year 2014, 2015, 2016, 2017, 2018, 2019
Additional Item Information

Wilwood

Since the company’s inception in 1977 by Billy Wood, Willwood has developed a substantial matrix of brake components and engineering techniques that allows them to quickly and reliably create brake systems for almost any application. With headquarters in Camarillo, California, Wilwood employs approximately 250 people. Wilwood's off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee - and right in the middle, they’re perfect for your Corvette too.
