74-77 Headlight On/Off Switch
Rating:
100% of 100
Item #:
ES-533
$35.99
In Stock - Ships today if ordered by 3:00 PM ET
-
+
Related To This Item

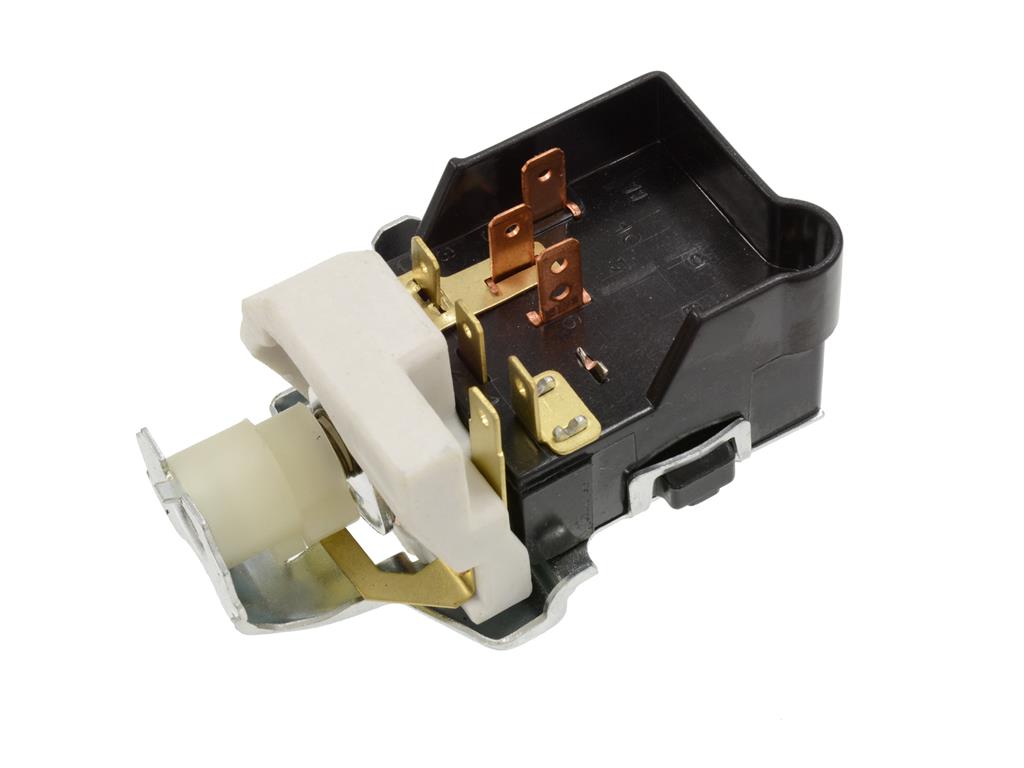

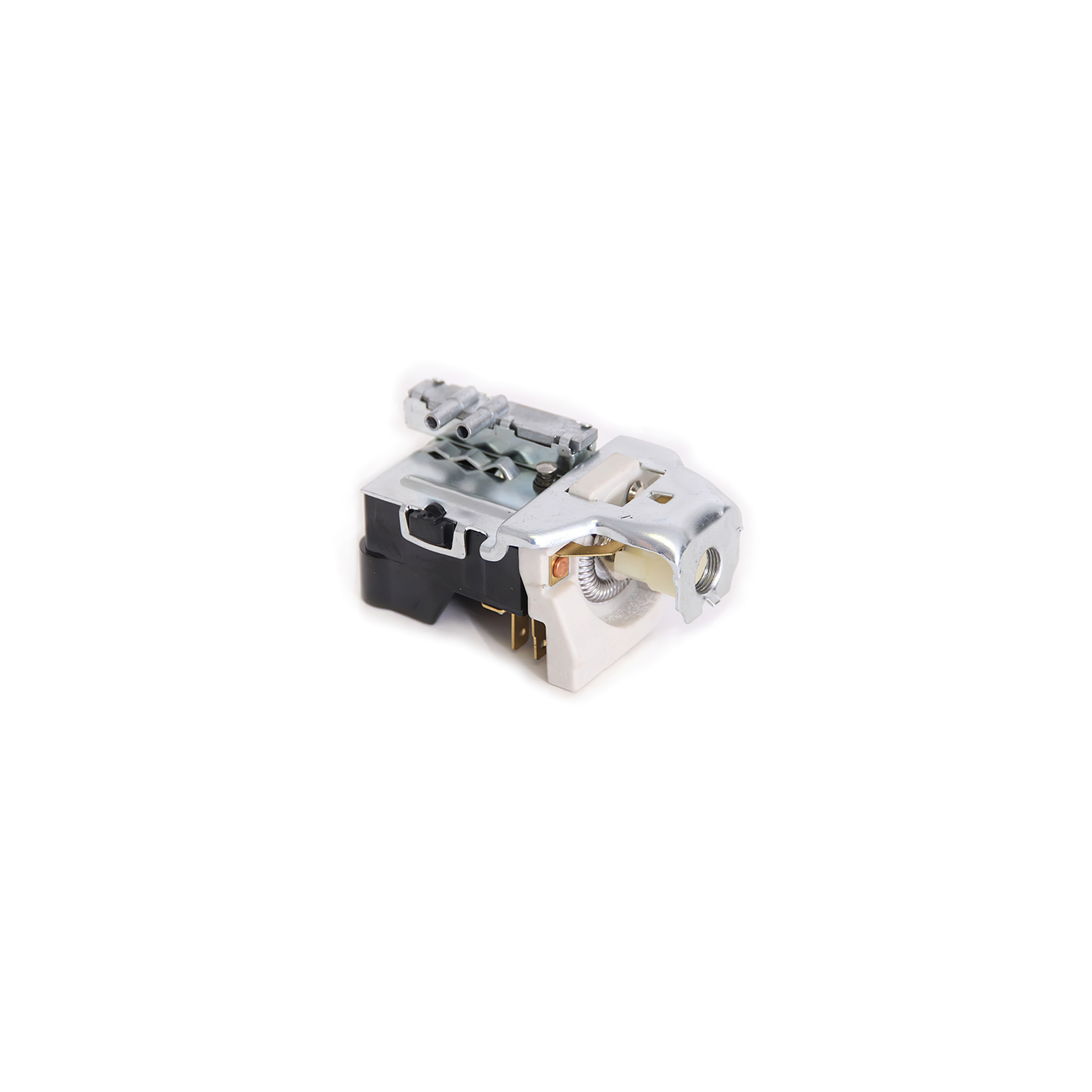

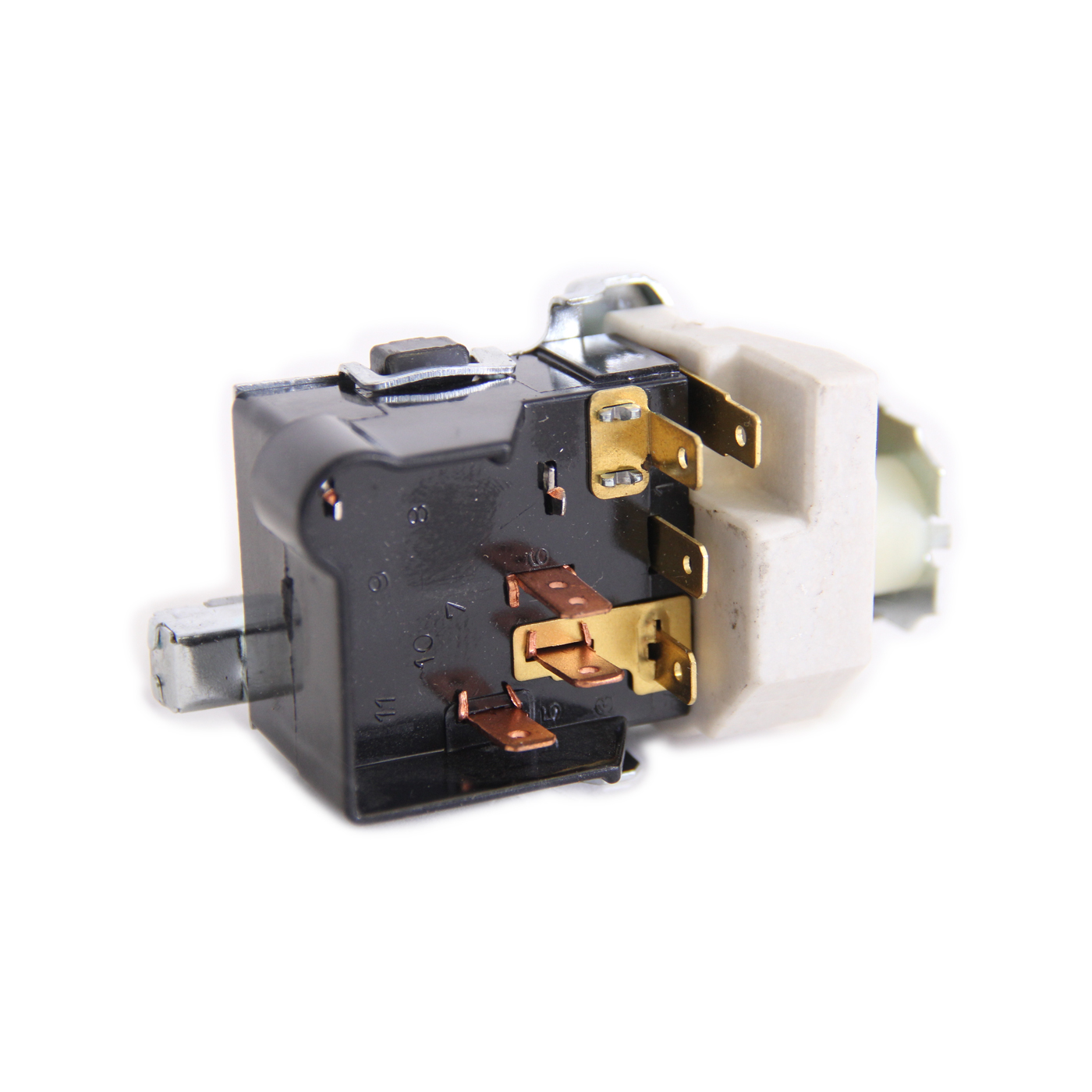

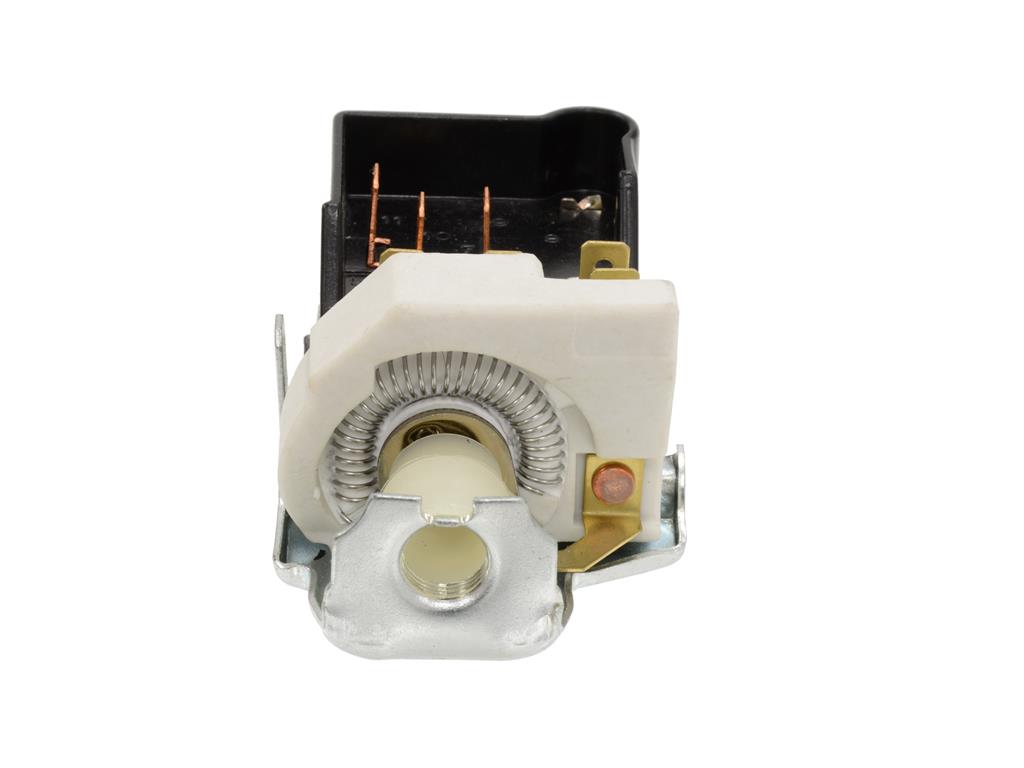

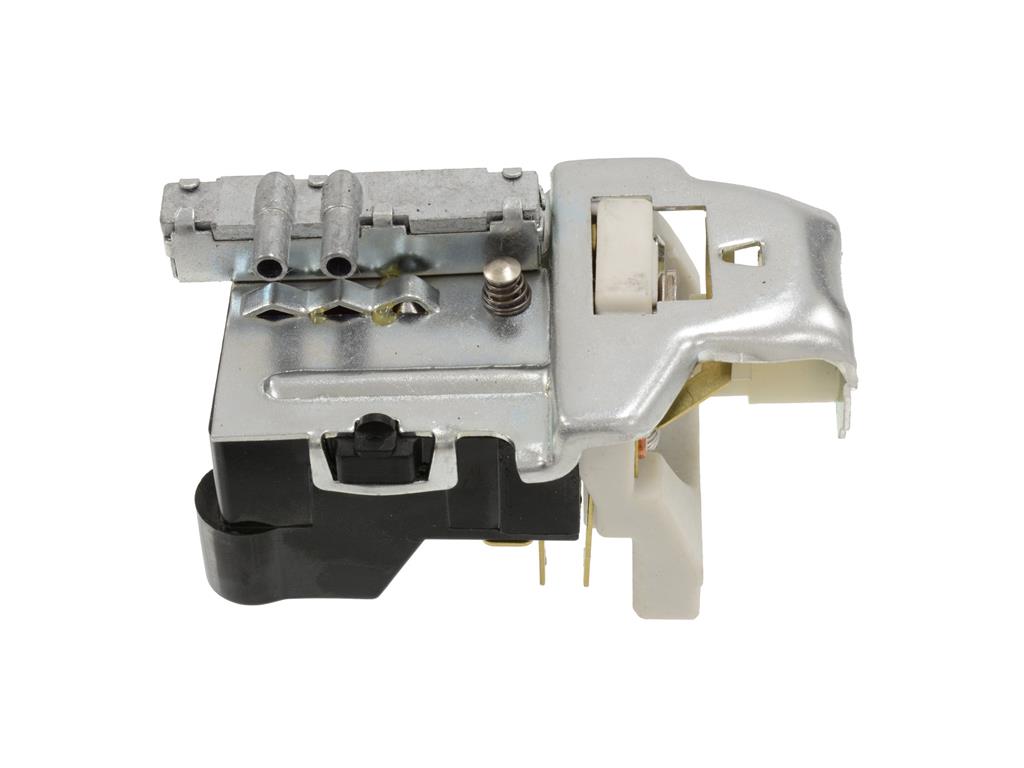

New reproduction 1974-1977 Corvette headlight switch manufactured to fit and function as original. Includes upgraded internal circuit breaker to handle the original incandescent bulbs, as well as the higher amperage halogen bulbs. 1974-1977 switches are slightly modified to accommodate resistance for dome light bulb. Mounts into dash panel, connects into main/dash harness and accepts the headlight "push/pull" rod and knob. Features dash light dimmer functionality and vacuum ports on backside for correct vacuum headlight lift & closing operation.

Headlight knob/rod can be removed by simply depressing the release button on the top of the switch.

(GM Part 1995191)

This item is proudly Made in the USA

Installation difficulty: 3

Our technicians have determined that the installation difficulty level of this item is a 3 on a scale of 1-5. Read more about our install ratings here.

Technical Articles:

Model Years

More Information
Generation C3
Model Year 1974, 1975, 1976, 1977
Additional Item Information
  • OE GM PART #: 1995191 *GM part # provided for lookup purposes only.
