75 Headlight & Forward Light Wiring Harness
Item #:
E-328
$409.99
In Stock - Ships today if ordered by 3:00 PM ET
-
+
Related To This Item

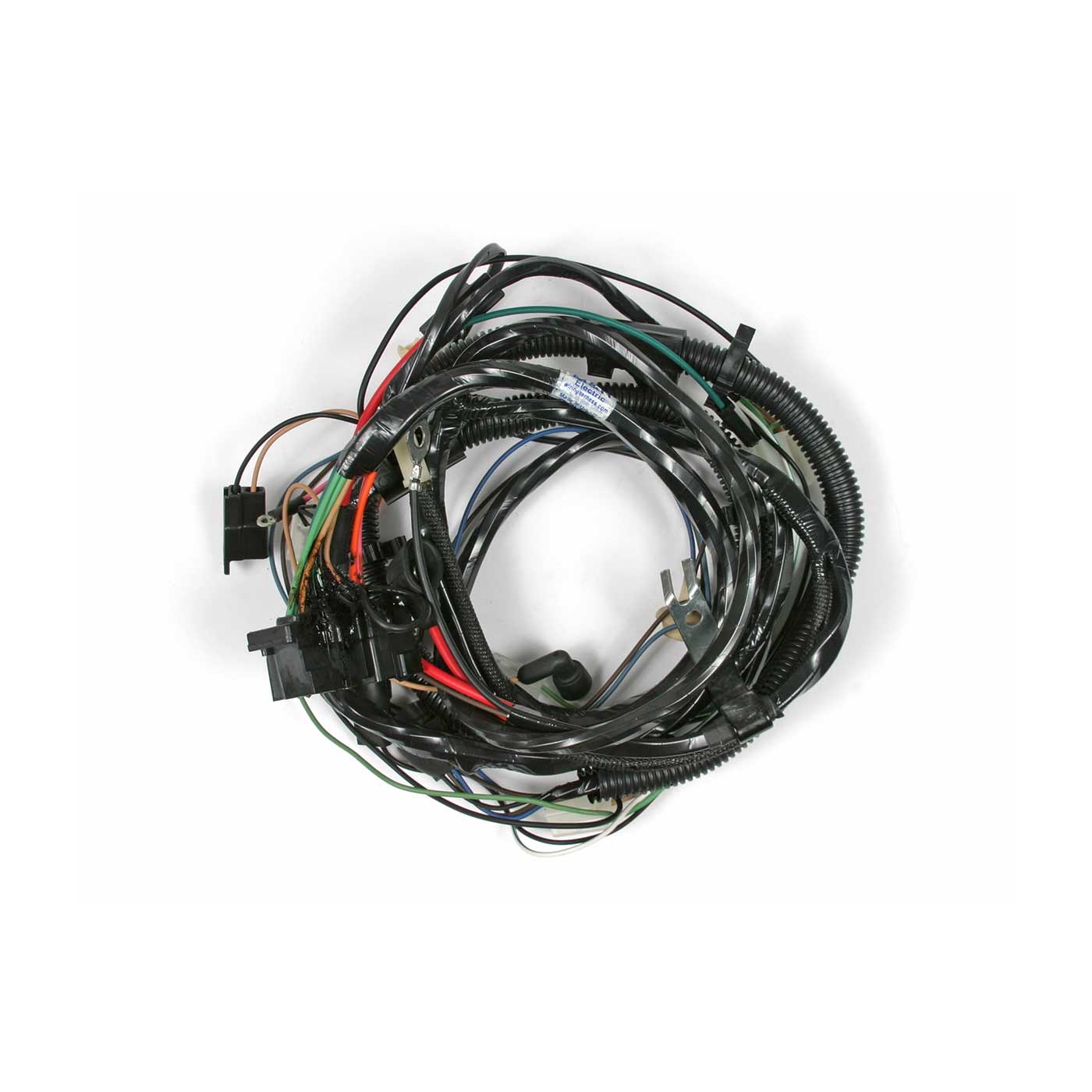

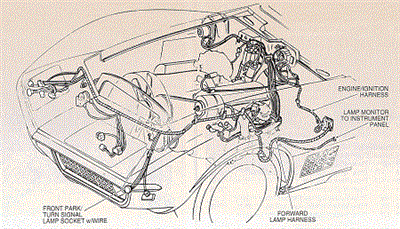

Reproduction 1975 Corvette headlight and forward lamp wiring harness. Attaches to main dash wiring harness at the firewall and connects to many of the components in the lighting circuit going forward. Connects to the following components:

  • Alarm System On/Off Switch
  • Alternator
  • Brake Pressure Warning Switch
  • Dash Harness Connection (at firewall)
  • Engine Harness Connection
  • Ground (alternator)
  • Ground (to driver side radiator support)
  • Ground (to header support)
  • Headlights (driver & passenger side)
  • Headlight Door Limit Switch (driver & passenger side)

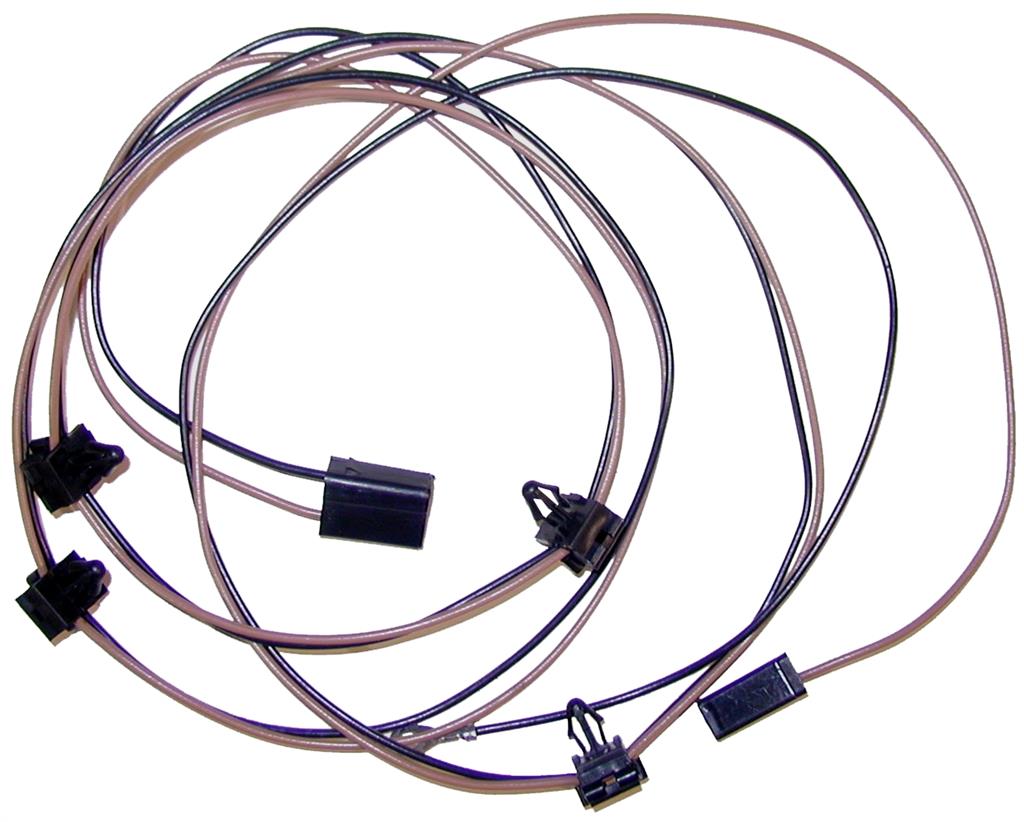

  • Hood Scoop Air Door Harness Connection
  • Horn
  • Parking Light Extension Connection (driver & passenger side)
  • Side Marker Light (driver & passenger side)
  • Temperature Sending Unit

Note: 1970-1977 Corvettes require use of front park light extensions to complete installation, see Zip # E-581.

Factory wiring harnesses originally supplied with your Corvette had a 10 year service life. How old is your Corvette's wiring? 20, 30, maybe 40+ years. Original harnesses were made with copper strand housed in plastic. Over time the plastic deteriorates, becoming brittle and cracked, allowing moisture to get into the wire, which in turn causes the copper to begin corroding. Corroded wires lead to short circuits with the possibility of an electrical fire. Why gamble on the condition of an old harness to save a few bucks?

Zip provides the Corvette owner with the most correct wiring harnesses available. All harnesses are hand assembled in the USA, guaranteed to fit. Harnesses feature correct wires that match factory color codes and gauge size, but are made with Cross Linked Polyethylene type GXL wire which is much more tolerant to heat than the original PVC type GPT wire. Connections are dip soldered (where applicable) to eliminate resistance loss and feature reproduction connectors and terminals. All harnesses are wrapped with correct non-adhesive or cloth woven tapes to assure a 100% factory appearance.

This item is proudly Made in the USA

Model Years

More Information
Generation C3
Model Year 1975
