77L-78E Power Window Harness (2nd Design)

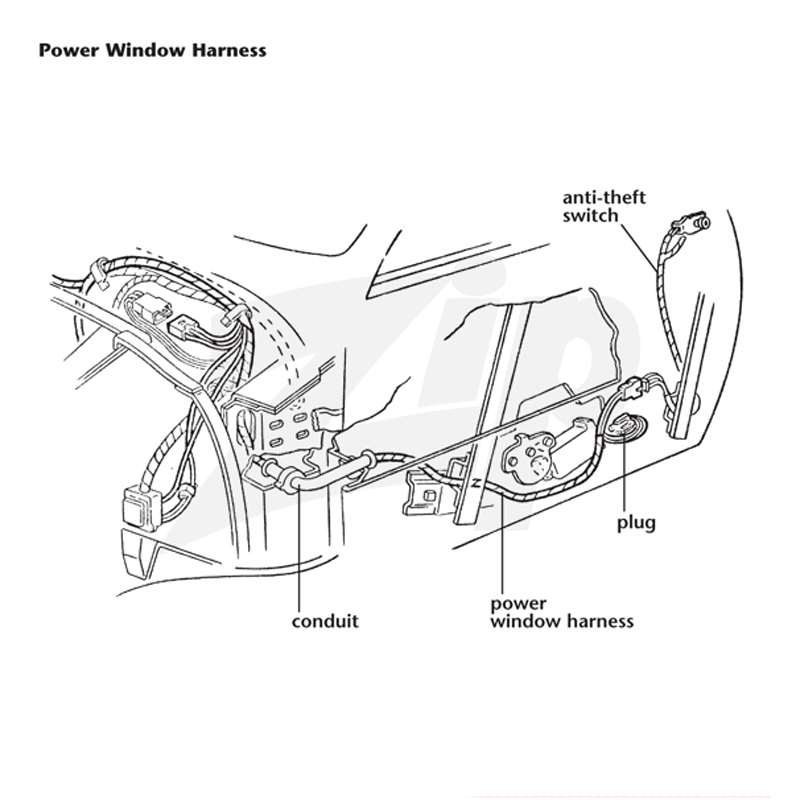

New reproduction 1977 Late - 1978 Early Corvette power window harness. Shark Corvette power window harness is a stand-alone harness that plugs into the fuse box and routes from the driver side power window motor through the conduit, across the dash to the power window switches located in the park brake console and then across to the passenger side power window motor.

Factory harnesses originally supplied with your Corvette had a 10 year service life. How old is your Corvette's wiring? 20, 30, maybe 40+ years. Original harnesses were made with copper strand housed in plastic. Over time the plastic deteriorates, becoming brittle and cracked, allowing moisture to get into the wire, which in turn causes the copper to begin corroding. Corroded wires lead to short circuits with the possibility of an electrical fire. Why gamble on the condition of an old harness to save a few bucks?

Zip provides the Corvette owner with the most correct wiring harnesses available. All harnesses are hand assembled in the USA, guaranteed to fit. Harnesses feature correct wires that match factory color codes and gauge size, but are made with Cross Linked Polyethylene type GXL wire which is much more tolerant to heat than the original PVC type GPT wire. Connections are dip soldered (where applicable) to eliminate resistance loss and feature reproduction connectors and terminals. All harnesses are wrapped with correct non-adhesive or cloth woven tapes to assure a 100% factory appearance.

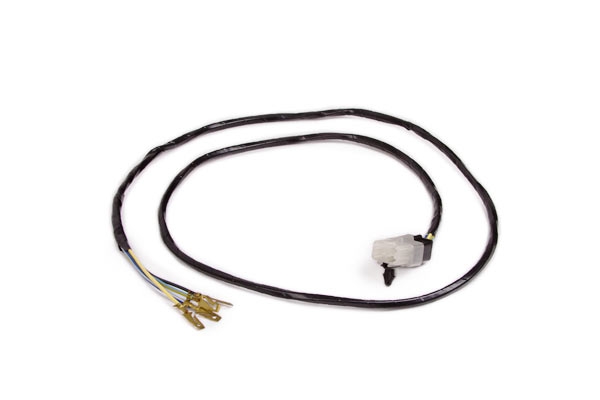

Note: Fits 1977 late Corvette with alarm switch wiring in doors and 1978 early Corvette with courtesy lamp timer mounted left of steering column. See Zip # E-619 for alarm system harness.
