81 Headlight Wiring Harness (w/ Analog Radio)

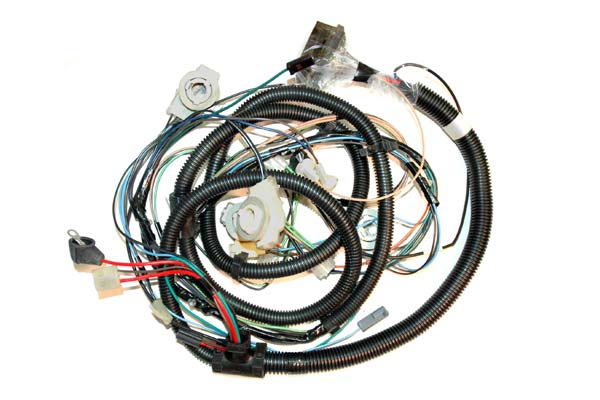

Reproduction 1981 Corvette headlight and forward lamp wiring harness. Correct fitment for Corvettes with analog radio and clock in console. Attaches to main dash wiring harness at the firewall and connects to many of the components in the lighting circuit going forward. Connects to the following components:

• Alternator
• Brake Pressure Warning Switch
• Carburetor Electric Choke
• Carburetor Idle Stop Solenoid
• Dash Harness Connection (at firewall)
• Engine Hood Light Connection
• Front Cornering Light (driver & passenger side)
• Front Parking Light (driver & passenger side)
• Ground (alternator)
• Ground (to body mount bracket)
• Headlights (driver & passenger side)
• Horn
• Horn Ground (bolt on header support)
• Temperature Sending Unit

Note: 1981-1982 Corvette forward lamp harness vary depending on whether the alternator power harness was included in the forward lamp or not. This harness was used on Corvettes with the analog radio and clock gauge in center console. The harness includes the alternator or battery charging circuit and does not require the use of an alternator to rear accessory junction block harness part # E-880.

Factory wiring harnesses originally supplied with your Corvette had a 10 year service life. How old is your Corvette's wiring? 20, 30, maybe 40+ years. Original harnesses were made with copper strand housed in plastic. Over time the plastic deteriorates, becoming brittle and cracked, allowing moisture to get into the wire, which in turn causes the copper to begin corroding. Corroded wires lead to short circuits with the possibility of an electrical fire. Why gamble on the condition of an old harness to save a few bucks?

Zip provides the Corvette owner with the most correct wiring harnesses available. All harnesses are hand assembled in the USA, guaranteed to fit. Harnesses feature correct wires that match factory color codes and gauge size, but are made with Cross Linked Polyethylene type GXL wire which is much more tolerant to heat than the original PVC type GPT wire. Connections are dip soldered (where applicable) to eliminate resistance loss and feature reproduction connectors and terminals. All harnesses are wrapped with correct non-adhesive or cloth woven tapes to assure a 100% factory appearance.
