81 Manual Engine Wiring Harness
Item #:
E-663
$319.99
Dropship - This item ships direct from the manufacturer and is not eligible for express shipping.
-
+

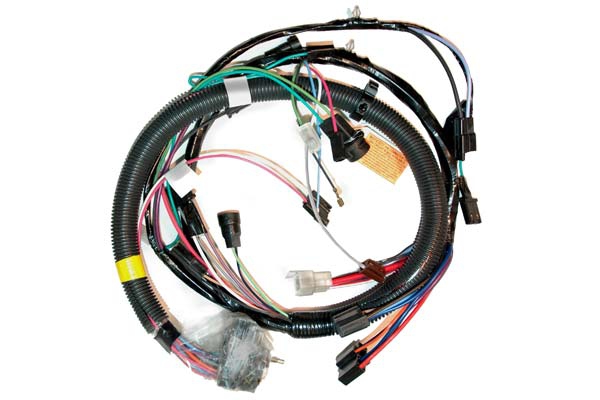

New reproduction 1981 Corvette engine wiring harness. Fits 1981 Corvettes with manual transmission. 1981 Corvette engine harness also includes the air condition wiring harness.

Engine harness attaches to the backside of the fuse panel on the engine side, and routes across the firewall connecting to the distributor ignition coil, oil pressure sending unit connector, oil temperature sender, wiper motor, washer pump, hood ajar, tachometer filter connector, back-up light switch connector, ECM harness connector, radiator cooling fan harness connector and starter motor extension connector. Air condition wiring includes blower motor, air condition relay, compressor clutch and cycling switches.

Note: Requires use of oil pressure sender extensions and starter motor extension harness to complete installation.

Factory wiring harnesses originally supplied with your Corvette had a 10 year service life. How old is your Corvette's wiring? 20, 30, maybe 40+ years. Original harnesses were made with copper strand housed in plastic. Over time the plastic deteriorates, becoming brittle and cracked, allowing moisture to get into the wire, which in turn causes the copper to begin corroding. Corroded wires lead to short circuits with the possibility of an electrical fire. Why gamble on the condition of an old harness to save a few bucks?

Zip Corvette provides the Corvette owner with the most correct wiring harnesses available. All harnesses are hand assembled in the USA, guaranteed to fit. Harnesses feature correct wires that match factory color codes and gauge size, but are made with Cross Linked Polyethylene type GXL wire which is much more tolerant to heat than the original PVC type GPT wire. Connections are dip soldered (where applicable) to eliminate resistance loss and feature reproduction connectors and terminals. All harnesses are wrapped with correct non-adhesive or cloth woven tapes to assure a 100% factory appearance.

This item is proudly Made in the USA

Model Years

More Information
Generation C3
Model Year 1981
