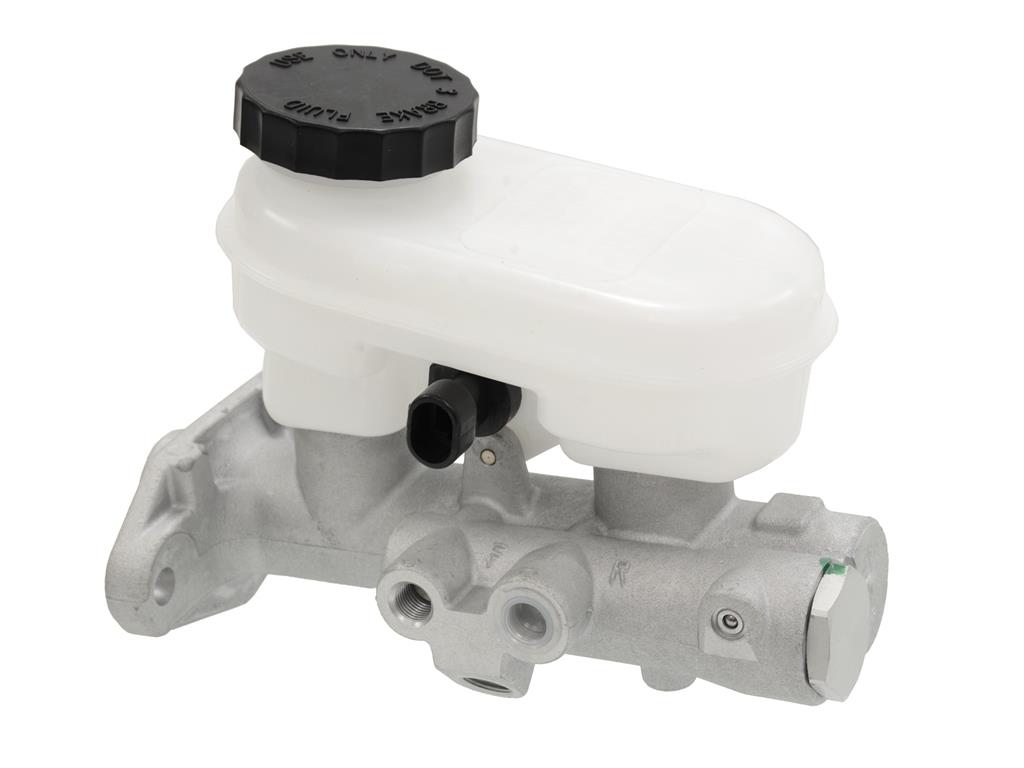

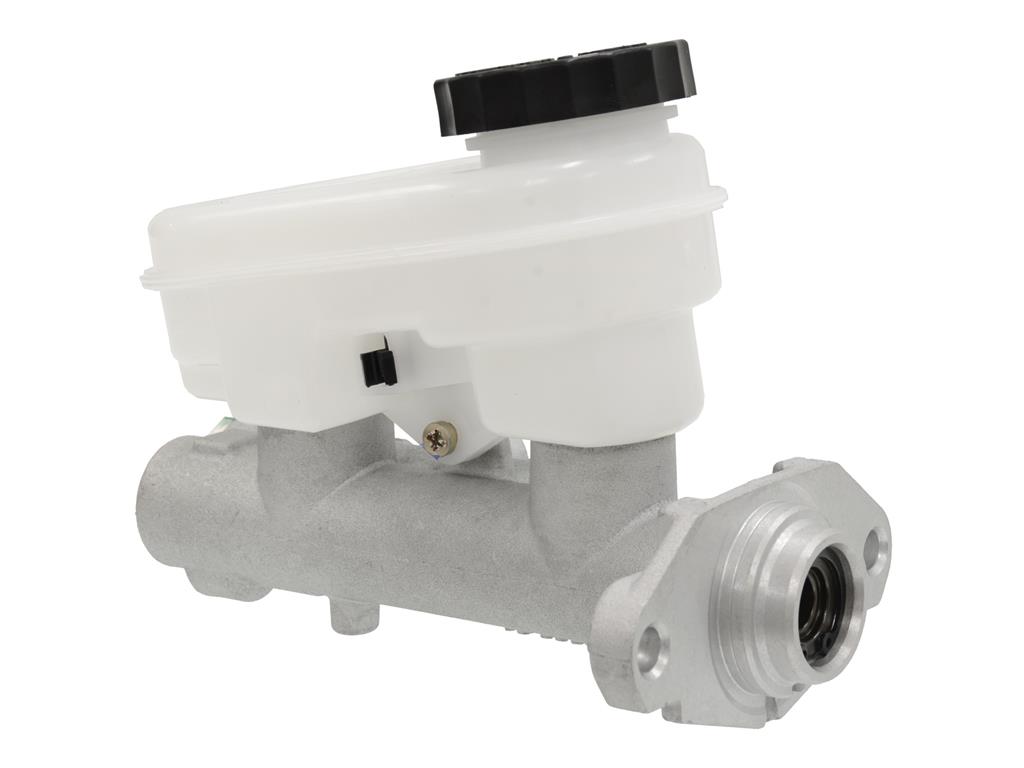

95-96 Master Cylinder - New - 12mm Sensor Port
Item #:
194236
$300.90
Available On Backorder - This item usually ships within 7-10 days
* 1995 Automatic
* 1996 All
* Cylinder housing is constructed from high-quality cast iron or aluminum for long-lasting durability
* All rubber components are of high-quality EPDM compound for resistance to glycol-based brake fluid
* Direct replacement for a proper fit
* Manufactured to strict engineering quality standards, each Brake Master Cylinder meets S.A.E. specifications
The factory master cylinder has a rubber tube connected to the left side fluid reservoir that runs down to the ABS module. The service manual calls it a "prime" pipe. This replacement cylinder does not have a provision to attach the hose, you will need to reuse your existing fluid reservoir
This is the 12mm x 1.0 bottom port thread casting.
* 1996 All
* Cylinder housing is constructed from high-quality cast iron or aluminum for long-lasting durability
* All rubber components are of high-quality EPDM compound for resistance to glycol-based brake fluid
* Direct replacement for a proper fit
* Manufactured to strict engineering quality standards, each Brake Master Cylinder meets S.A.E. specifications
The factory master cylinder has a rubber tube connected to the left side fluid reservoir that runs down to the ABS module. The service manual calls it a "prime" pipe. This replacement cylinder does not have a provision to attach the hose, you will need to reuse your existing fluid reservoir
This is the 12mm x 1.0 bottom port thread casting.
| Model Year | 1995, 1996 |
|---|---|
| Base Unit of Measure | EA |
| Search Description | C4 CORVETTE BRAKES MASTER CYLINDERS |
| Net Weight | 2.100000 |
| GM Item No. | 10202292 |
