63-67 w/o AC Wiring Harness Loom Clips
Item #:
M-2493
$24.99

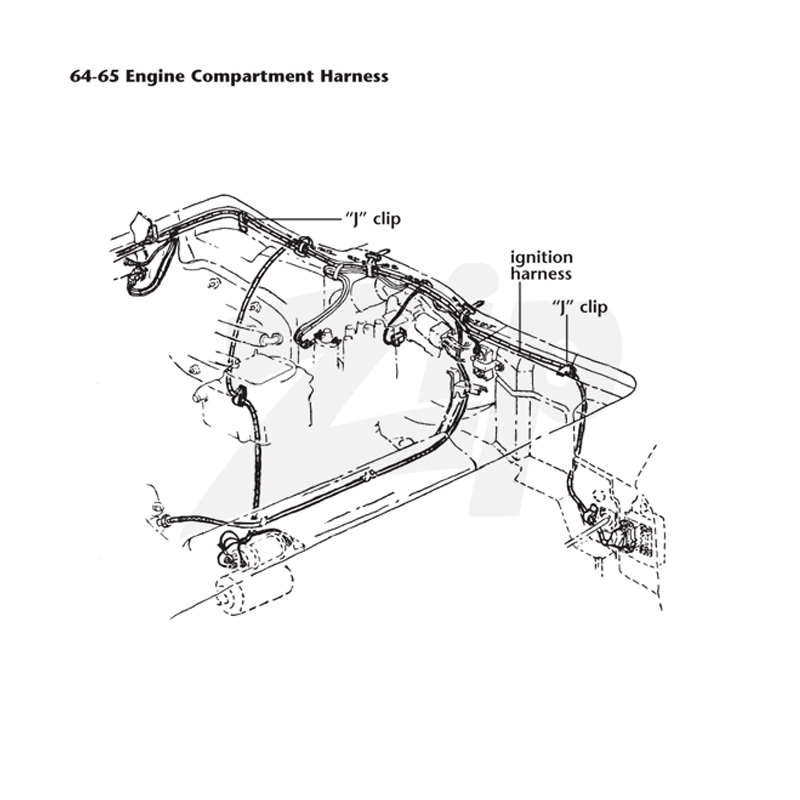

Original style 1963-1967 Corvette w/o air condition firewall wiring harness loom clips. Includes (12) rubber coated wiring harness clips plus original style fasteners for attachment. Includes correct size/shape clip for firewall/cowl wiring harness routing, speedometer cable, transistor ignition harness (if optioned), forward lamp harness along driver's side inner fender and rear tail lamp harness. Car set.
1963-1967 w/o AC Wiring Harness Retaining Clip kit includes:
- (9) Vinyl Coated "J" Clips
- (2) 1/8" Pop Rivets
- (2) 1/8" Flat Washers
- (6) 3/16" Pop Rivets
- (2) 3/16" Flat Head Rivets
- (2) 3/16" Pan Head Rivets
- (1) 1/4" Hex Screw (TI Application)
- (3) 1/8" Pan Head Rivets
- (2) 3/16" Flat Washers
- (3) Vinyl Coated Clips for Rear Wiring Harness
Assembly manual and included instruction sheet provide detailed location for each clip and hardware used for attachment.
This item is proudly Made in the USA| SKU | M-2493 |
|---|---|
| Generation | C2 |
| Model Year | 1963, 1964, 1965, 1966, 1967 |
