63-68 "Green" Brake Line Clip w/Pin
Item #:
DB-502
$11.99
In Stock - - Ships today if ordered by 3PM ET
Related To This Item

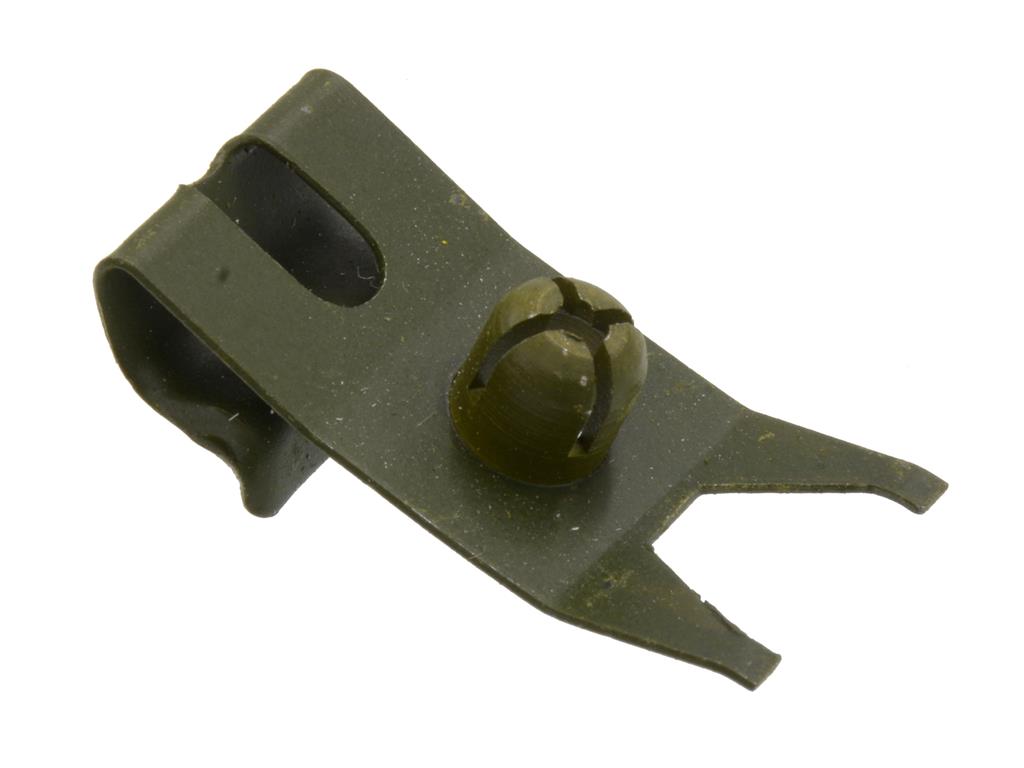

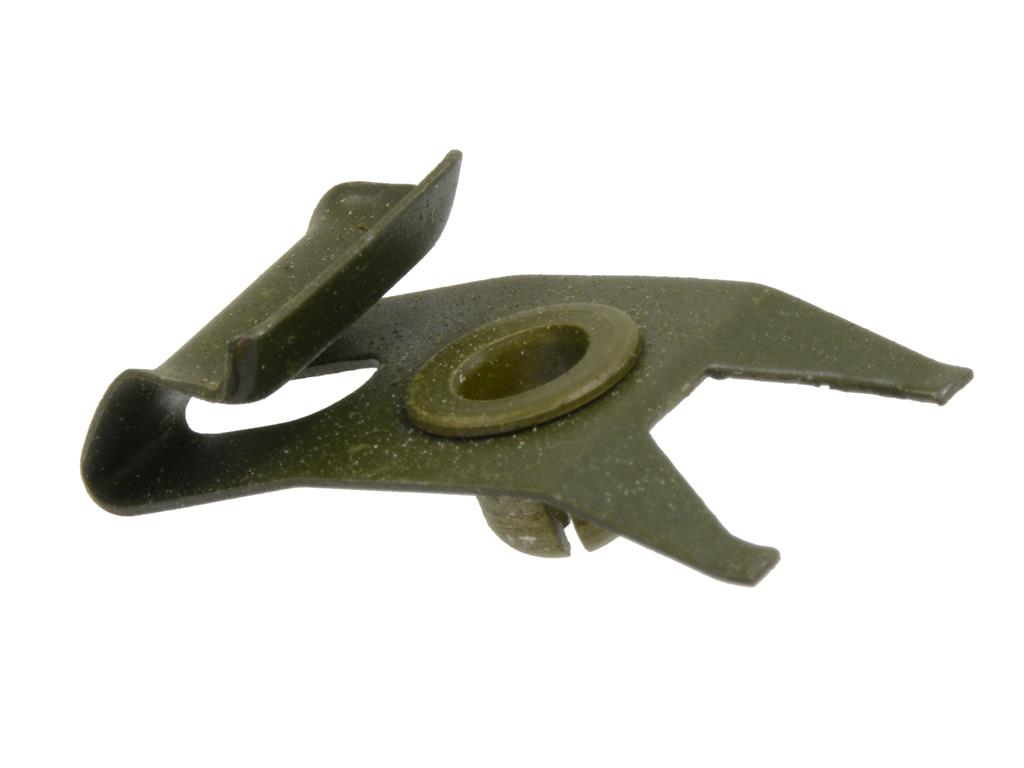

Correct reproduction 1963-1968 Corvette "Green" brake line clip. Mounts brake line to frame or crossmember. Sold individually. Order as needed:
- 1963-1965 Corvette = 4 required per Corvette. (2) clips located by clutch frame bracket and (2) clips attaching rear crossover brake line to frame crossmember
- 1966 Corvette = 3 required per Corvette. (1) clips located by clutch frame bracket and (2) clips attaching rear crossover brake line to frame crossmember
- 1967-1968 Corvette = 2 required per Corvette. (2) clips attaching rear crossover brake line to frame crossmember
Note: Does not use bolt for attachment, use a small nail or punch to push through center of the button while holding on the frame. This will flare the back side and hold the clip in place. .
(GM Part 3779294)
| Model Year | 1963, 1964, 1965, 1966, 1967, 1968 |
|---|---|
| Base Unit of Measure | EA |
| Search Description | C2 C3 CROSSOVER CLIPS BRAKES LINES PARAGON |
| Paragon Item No | 6112 |
| Net Weight | 0.001000 |
| GM Item No. | 3779294 |
