63-74 Gas Tank Overflow Hose Support Spring

Item #:
SPR-150
$9.99
In Stock - Ships Monday
-
+

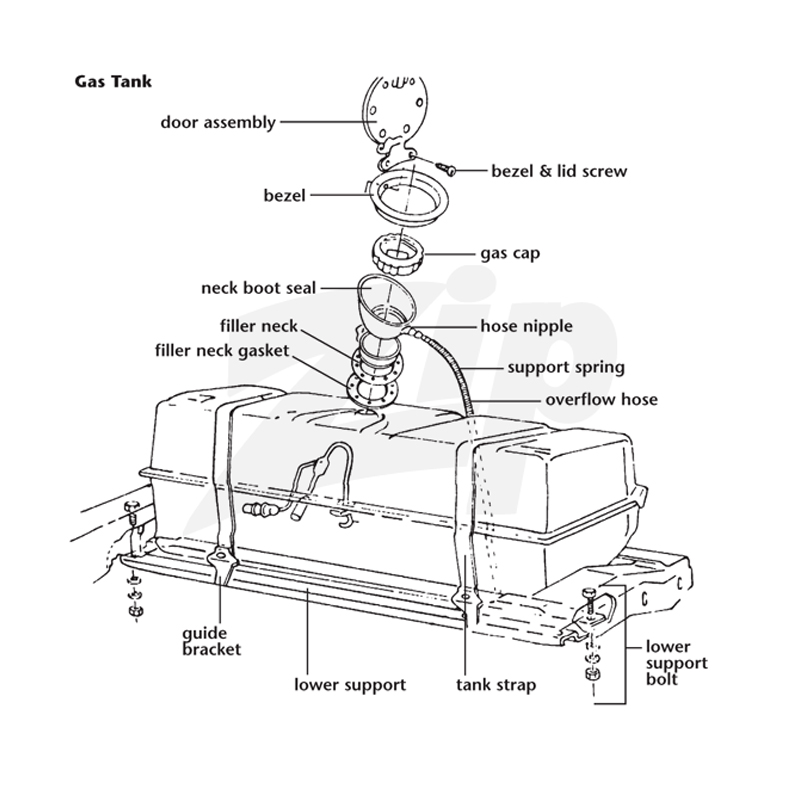

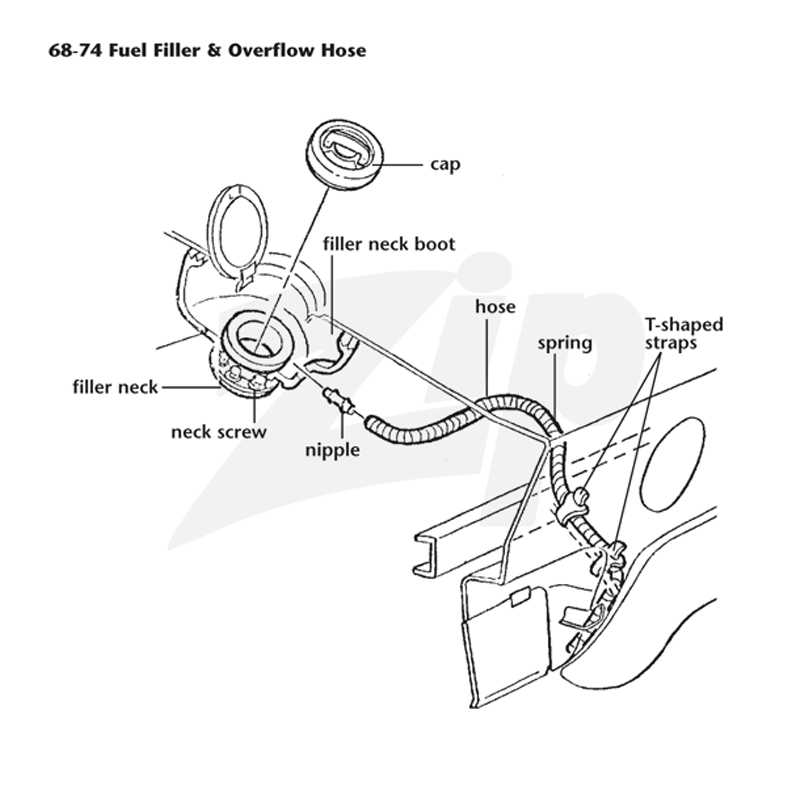

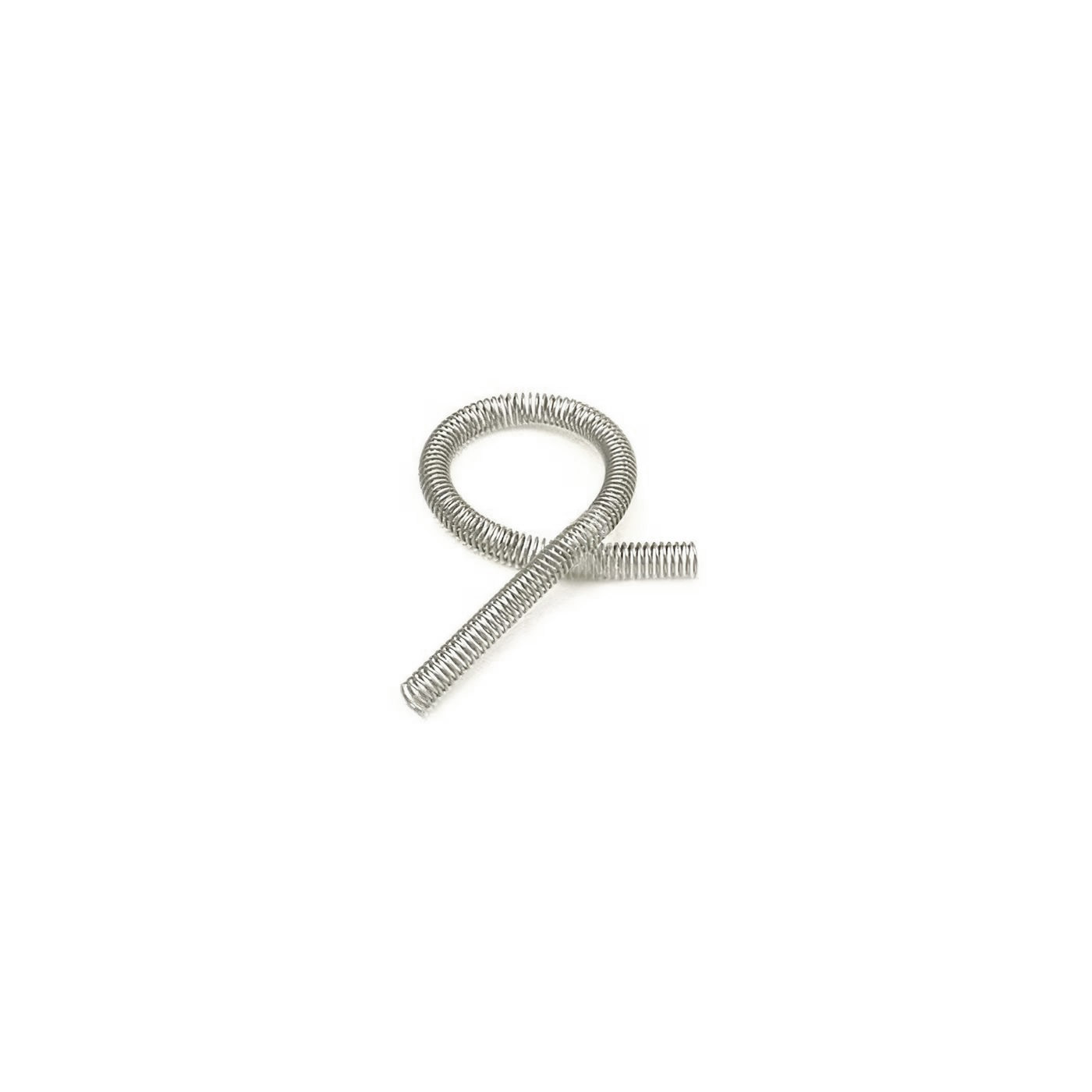

Reproduction 1963-1974 Corvette gas tank overflow hose support spring. Fits inside hose connecting to gas tank neck boot nipple which drains fuel overflow to underside of Corvette. Stainless spring keeps hose from kinking.

Installation Tip: Use an 18-inch long, 1/4-in drive extension to easy to get that push the spring into the hose to the correct spot. Slip the spring over the extension, then spray with pure silicone. It will be easy to push the spring all the way into the hose using the extension as a pilot. Once the spring is inside the end of the hose, pull the extension out, turn it around and use its large end to push the spring to the correct spot in the hose which is located where the hose curves to confirm to the top, rear corner of the fuel tank.

(GM Part 3829398)

This item is proudly Made in the USA

Technical Articles:

Model Years

More Information
Generation C2, C3
Model Year 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974
Additional Item Information
  • OE GM PART #: 3829398 *GM part # provided for lookup purposes only.
