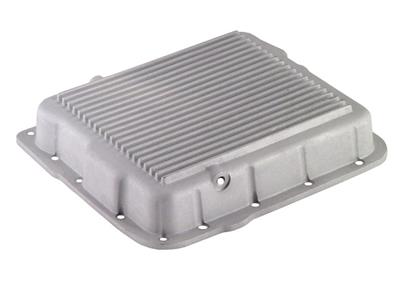

82-96 Automatic Transmission Pan - Low Profile - Cast Finish Aluminum
Item #:
533092
$348.80
Dropship - This item ships direct from the manufacturer and is not eligible for express shipping.
Low profile transmission cover for the 1982-1993 700R4 transmission or the 1993-1996 4L60E
transmission.
*Cast-in cooling fins
*Stiff aluminum construction with a .160" thick wall adds strength to the transmission case
*Thick-machined .350" gasket flange provides uniform clamping force on the gasket, for a no-leak, secure seal (stock covers are .035" stamped steel stock cover)
*Magnetic drain plug allows oil changes without removing the pan
*Available in 2 finishes: as cast, or black powder coated part # 533074
*Holds 4 quarts over stock for cooler oil temperatures.
NOTE: Some Corvette transmissions will require a modification to the 700-R4 shift cable bracket.
NOTE: These are sand cast parts and there will be some porosity.
transmission.
*Cast-in cooling fins
*Stiff aluminum construction with a .160" thick wall adds strength to the transmission case
*Thick-machined .350" gasket flange provides uniform clamping force on the gasket, for a no-leak, secure seal (stock covers are .035" stamped steel stock cover)
*Magnetic drain plug allows oil changes without removing the pan
*Available in 2 finishes: as cast, or black powder coated part # 533074
*Holds 4 quarts over stock for cooler oil temperatures.
NOTE: Some Corvette transmissions will require a modification to the 700-R4 shift cable bracket.
NOTE: These are sand cast parts and there will be some porosity.
| Model Year | 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
|---|---|
| Base Unit of Measure | EA |
| Search Description | C4 TRANSMISSION AUTOMATIC OIL COVERS PANS |
| Net Weight | 4.000000 |
