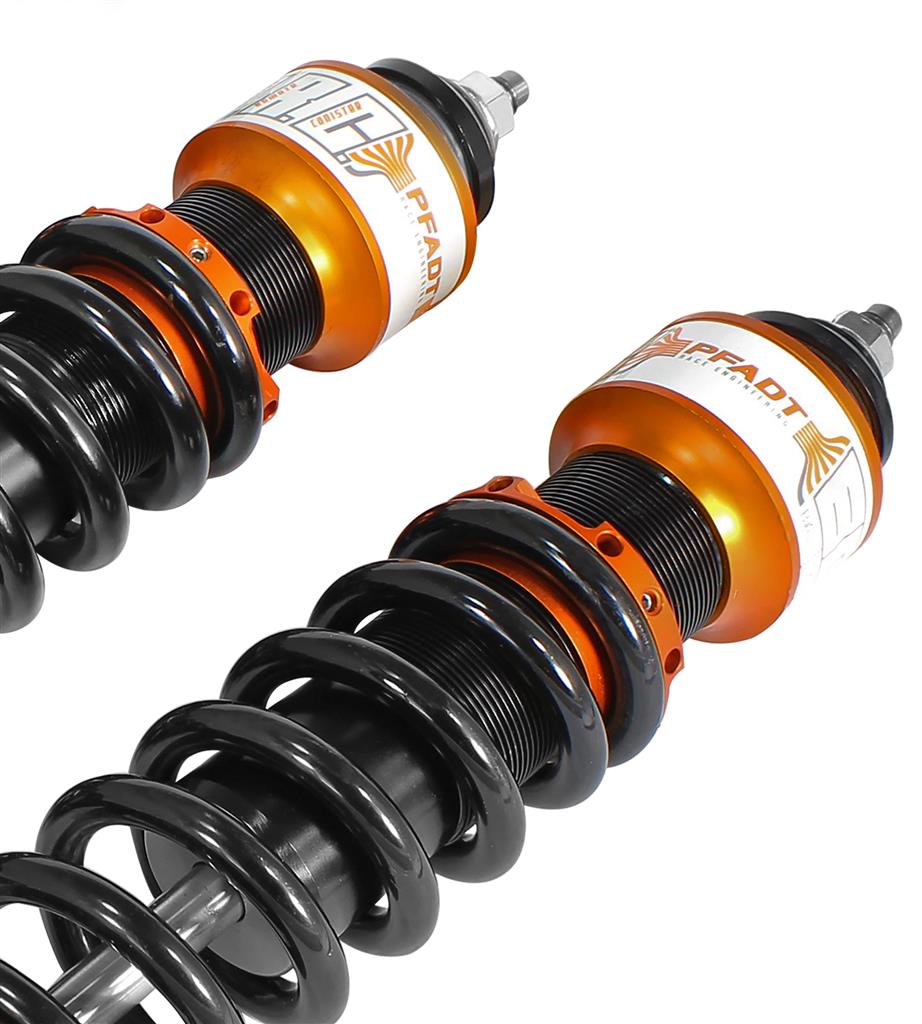

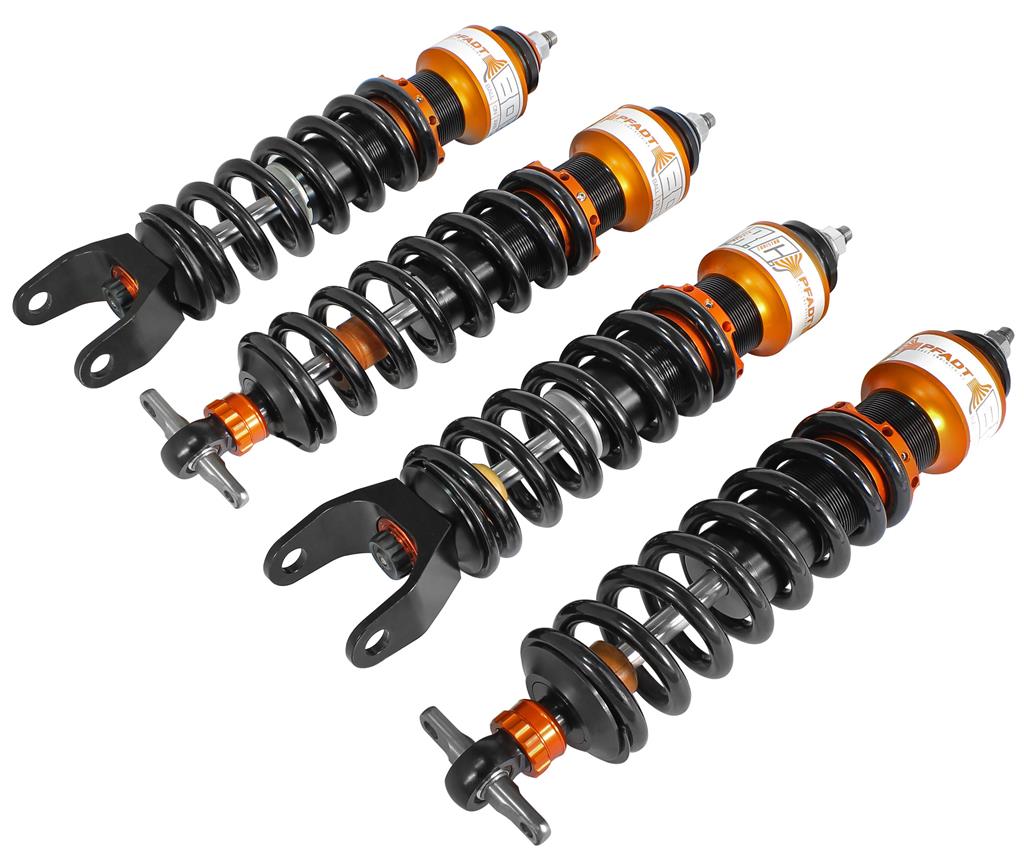

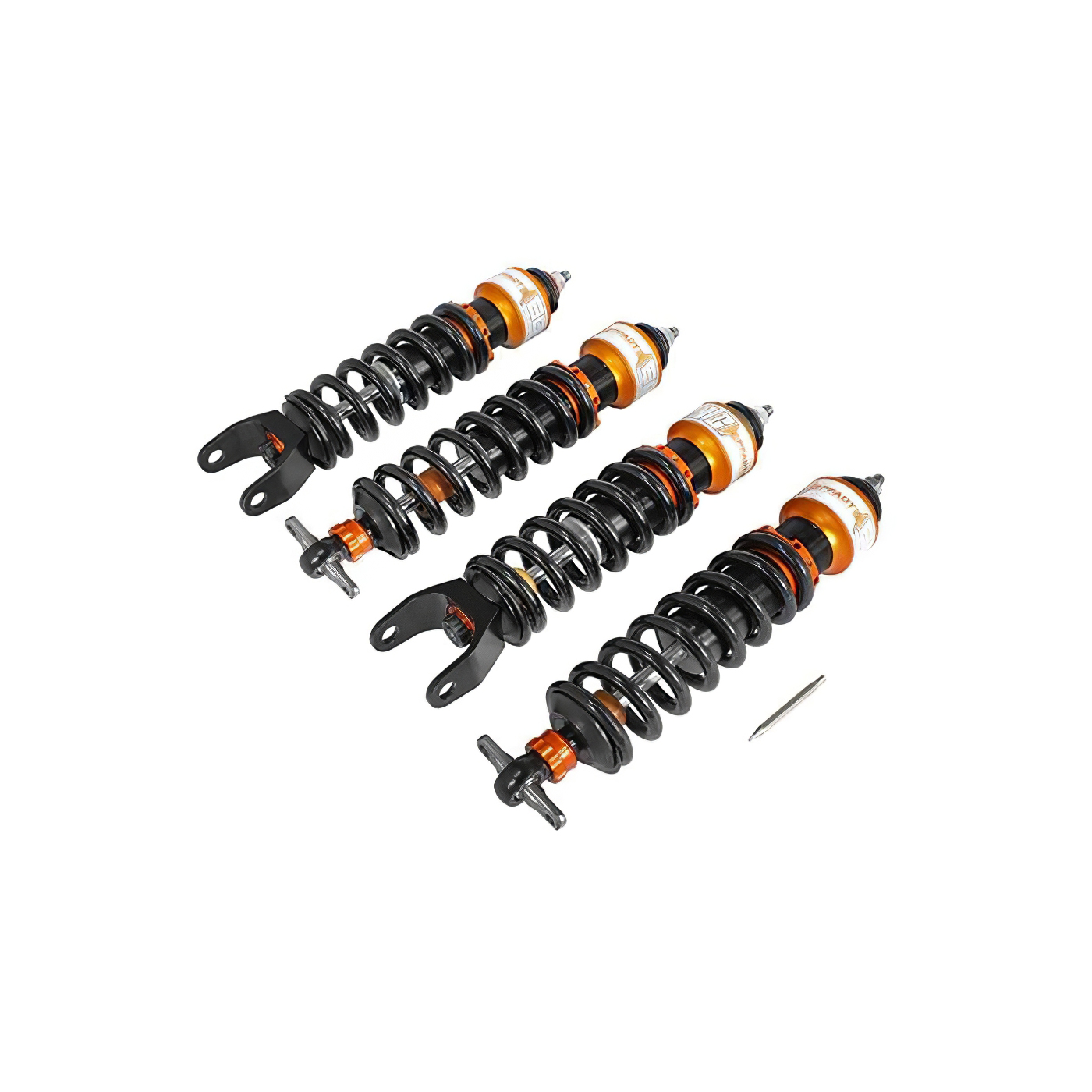

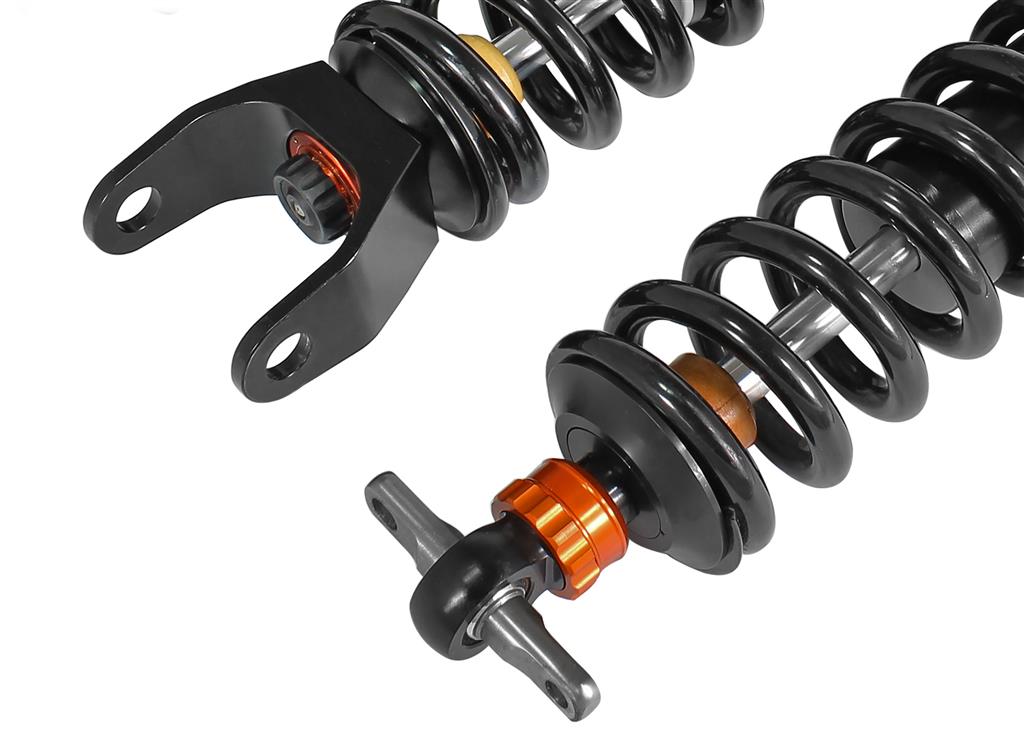

97-13 aFe Control PFADT Featherlight Adjustable Coilover Shocks

Item #:
No Discount

This item does not qualify for promotional discounts or wholesale pricing.

Dropship - This item ships direct from the manufacturer and is not eligible for express shipping.
Related To This Item

aFe Control is proud to release the PFADT Series Featherlight Adjustable Coilover System for the 1997-2013 Corvettes. Designed as a complete solution - Featherlight Coilovers will allow you to remove the transverse leaf springs and OE shocks on your C5 or C6 Corvette yielding a true independent suspension which eliminates the crosstalk and harsh ride that OEM suspensions are known for.

Both ride height and damping are easily adjustable allowing for fine tuning your Corvettes stance and ride quality. Packed with features, Featherlight Coilovers are precision CNC machined from 6061 T6 hard anodized aluminum .

The mono-tube construction utilizes a floating piston to separate oil and nitrogen gas, allowing for predictable handling and a consistent feel. The CIRC (Concentric Integrated Remote Canister) System more than triples the gas volume over a standard coilover resulting in consistent operation over a wide temperature range and throughout the stroke. Integrated into the CIRC head, is the BOA (Ball on Axis) upper mount, which is a completely sealed design allowing full articulation of the Corvettes suspension. Offering a durable quiet mounting solution without travel losscommon in other clevis style mounting systems.

The inverted design places the majority of the mass on the sprung side of the chassis allowing the control arms and outboard components to react quicker and easier without the additional weight of the coilover itself. The result is a suspension system that responds faster to changes in the road, whether its highway, local roads, or track surfaces. Damping adjuster is located on the bottom of the shock, allowing for quick easy adjustment. Since the coilovers employ double digressive valve technology, the easy touch rotary knob will adjust both compression and rebound in one device. You will feel 24 distinct settings on the front and rear shocks allowing for settings to accommodate comfortable street, all the way up to track settings. We even offer a specially tuned version for Drag race set ups.

Elevate your driving experience with the comfort, precision, and excitement of aFe Control PFADT Series Featherlight Adjustable Coilovers. Check out these Features:

  • Featherlight Coilovers are ride height adjustable, as well as damping adjustable for rebound and compression
  • Lightweight hard anodized 6061 T6 aluminum bodies, yield high strength, while still maintaining a lightweight design
  • Mono-Tube construction utilizes an internal floating piston to separate oil and gas allowing for more predictable handling and a consistent feel
  • BOA (Ball on Axis) upper mount system is a completely sealed mono-ball design that allows articulation required for the Corvette suspension resulting in a better ride and quiet operation

aFe Control Suspension products are engineered and manufactured in our Corona, California manufacturing facility.

aFe Item Number 430-401001-N

This item is proudly Made in the USA

Installation difficulty: 4

Our technicians have determined that the installation difficulty level of this item is a 4 on a scale of 1-5. Read more about our install ratings here.

Model Years

More Information
Generation C5, C6
Model Year 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
Additional Item Information
  • UPC: 802959000304
  • Manufacturer Part Number: 430-401001-N
  • P65 Warning WARNING: Cancer and Reproductive Harm -


Advanced FLOW Engineering (aFe) is all about moving air through your engine as effectively as possible. From Jeeps to Corvettes, aFe develops more than just cold air intakes and air filters. Their 160,000 square feet of facilities in Southern California house their corporate headquarters, manufacturing facility, R&D lab, and warehouse. Their complete product line includes: fluid filters, intake manifolds, turbochargers, exhaust, programming systems, and throttle body spacers. Zip uses aFe products because we believe their products are among the best available for the Chevrolet Corvette.
