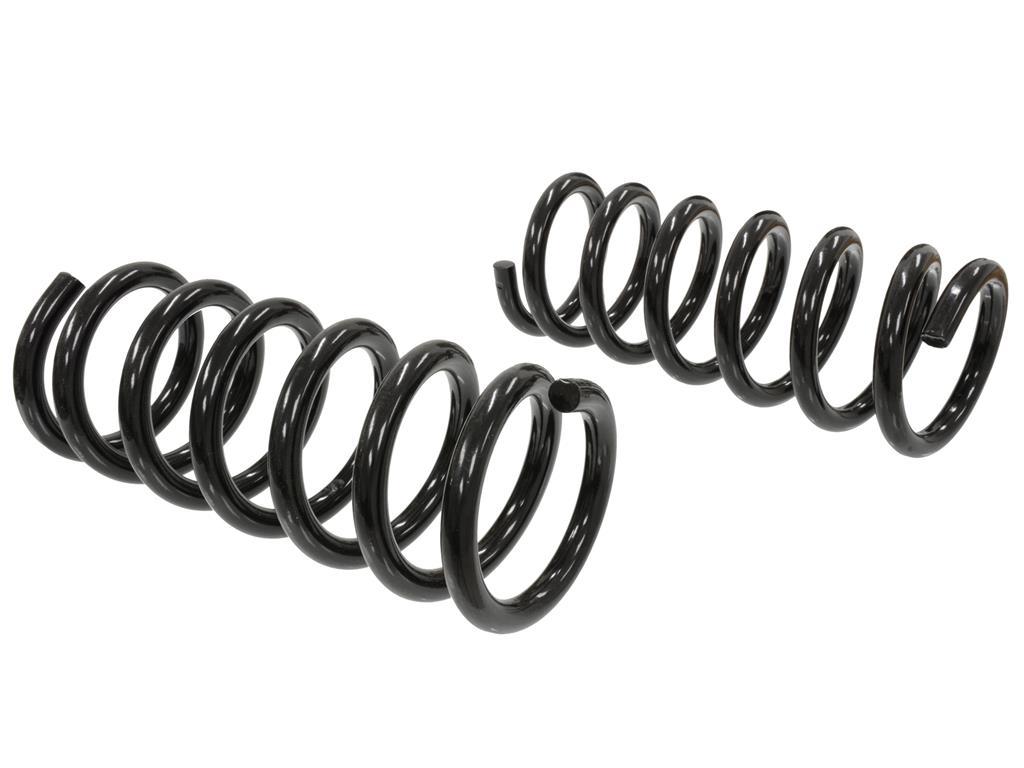

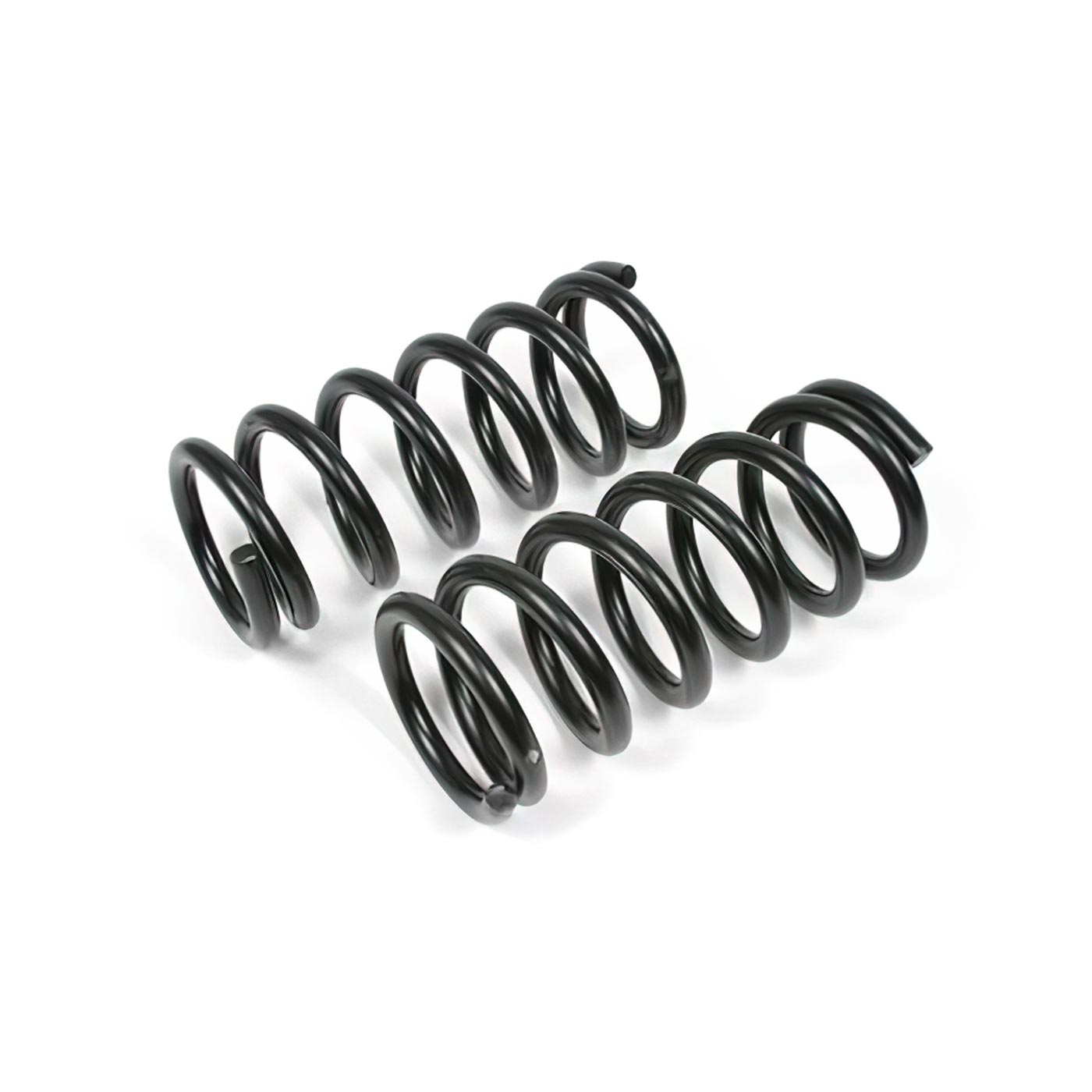

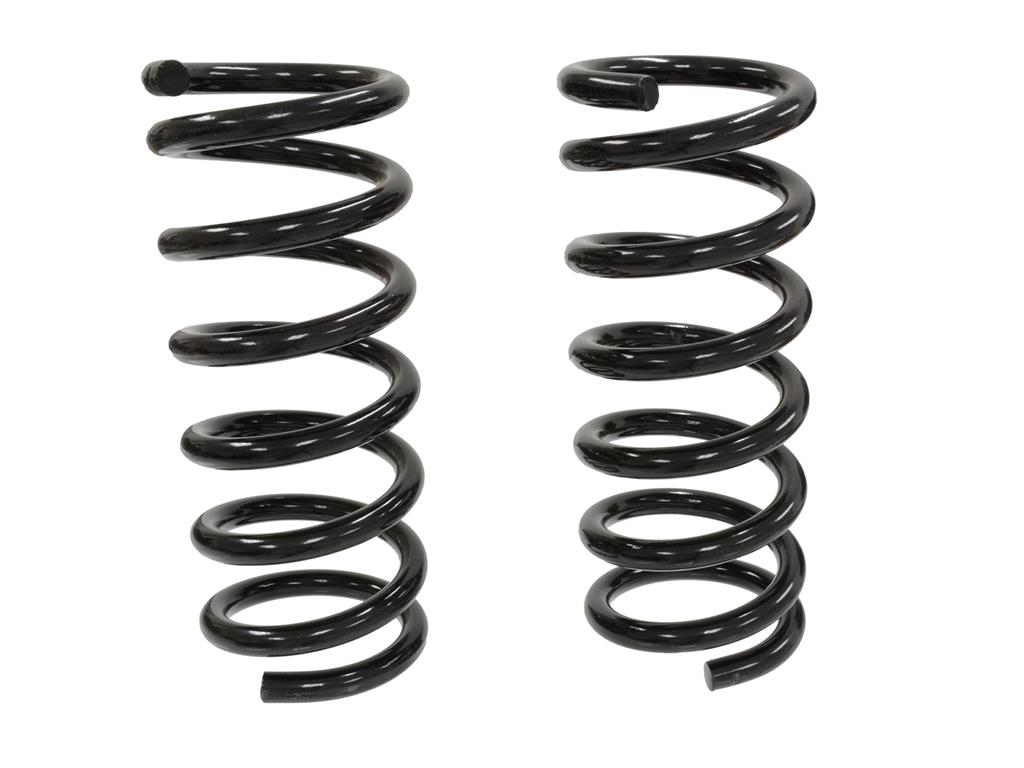

63-72 327 & 350 Front Coil Springs
New replacement 1963-1972 Corvette front coil springs will restore your Corvette's ride height and eliminate that sagging front end and mushy ride.
Replacement springs are similar to F41 suspension, utilizing a shorter spring but a higher spring rate. This makes for an easier installation without the use of dangerous spring compressors. Springs can be installed by placing them into the springs grooves in your lower control arm and using a jack to compressor the spring and align the control arm with the spindle assembly. These springs will not affect original ride height. Painted black. Sold in pairs.
1965-1982 Corvette front coil spring specifications:
- Free Height = 12.94"
- Installed Height = 10"
- Bar Diameter = .65"
- Spring Rate = 474 lbs/inch
- Load = 1400lbs
- Constant Rate
This item is proudly Made in the USA
Installation difficulty: 4
Our technicians have determined that the installation difficulty level of this item is a 4 on a scale of 1-5. Read more about our install ratings here.
Technical Articles:
Model Years
| SKU | SU-660 |
|---|---|
| Generation | C2, C3 |
| Model Year | 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
