63-82 Trailing Arm Bushing Sleeve (Stainless)
Item #:
SU-87
$10.99
Related To This Item

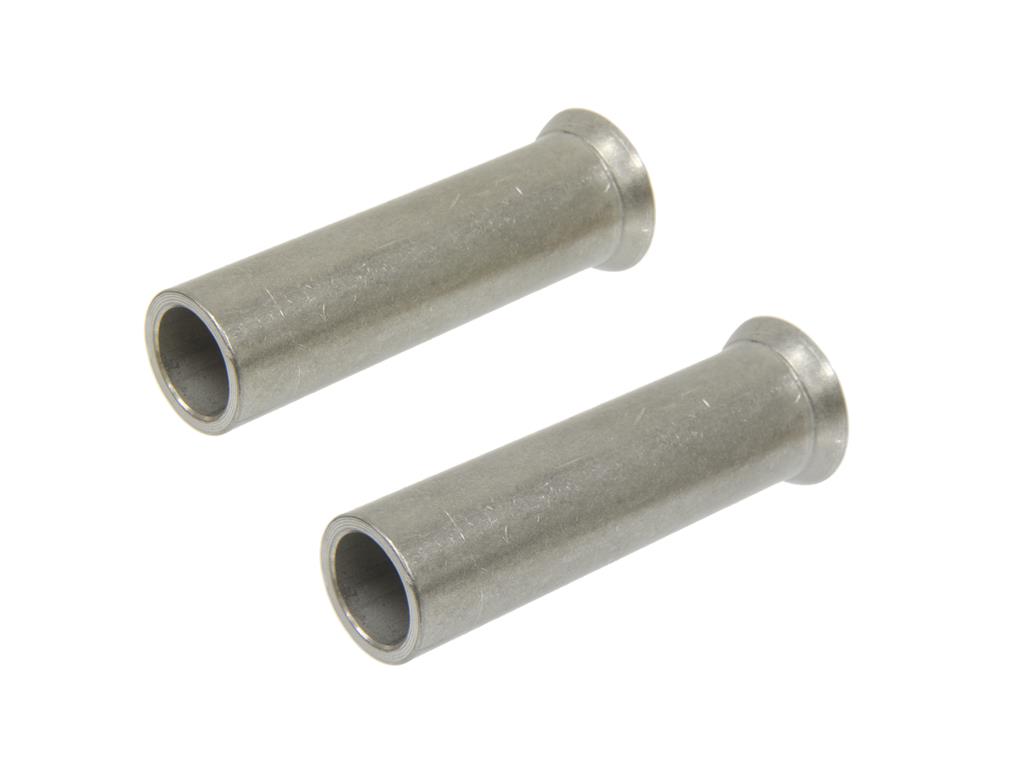

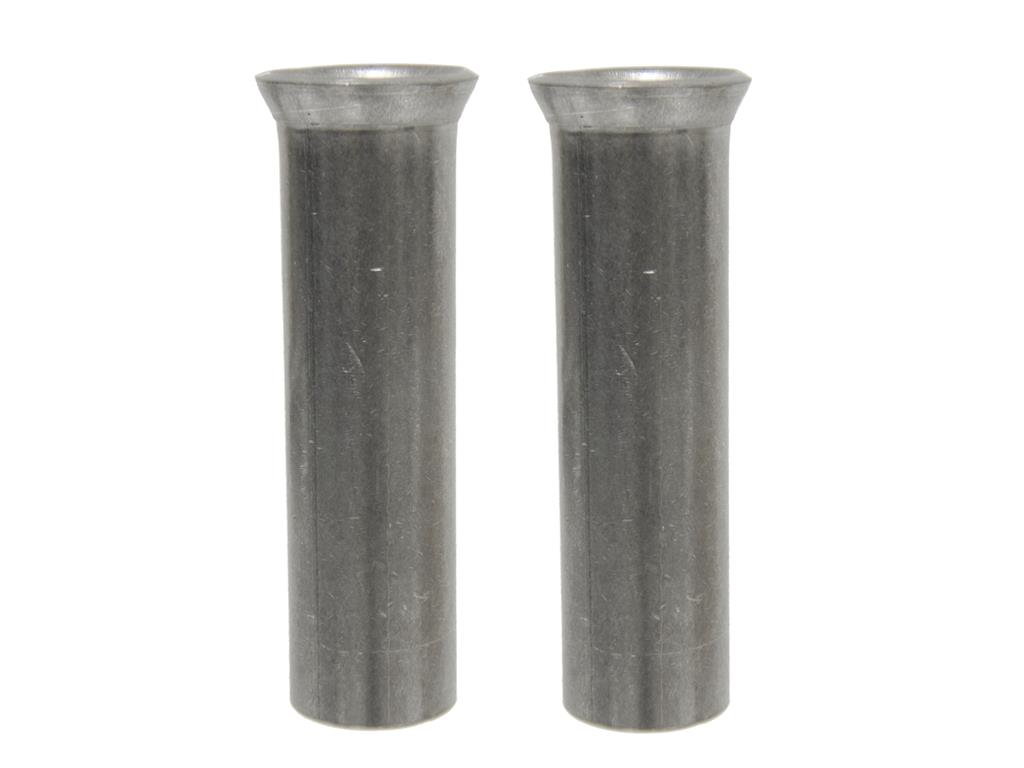

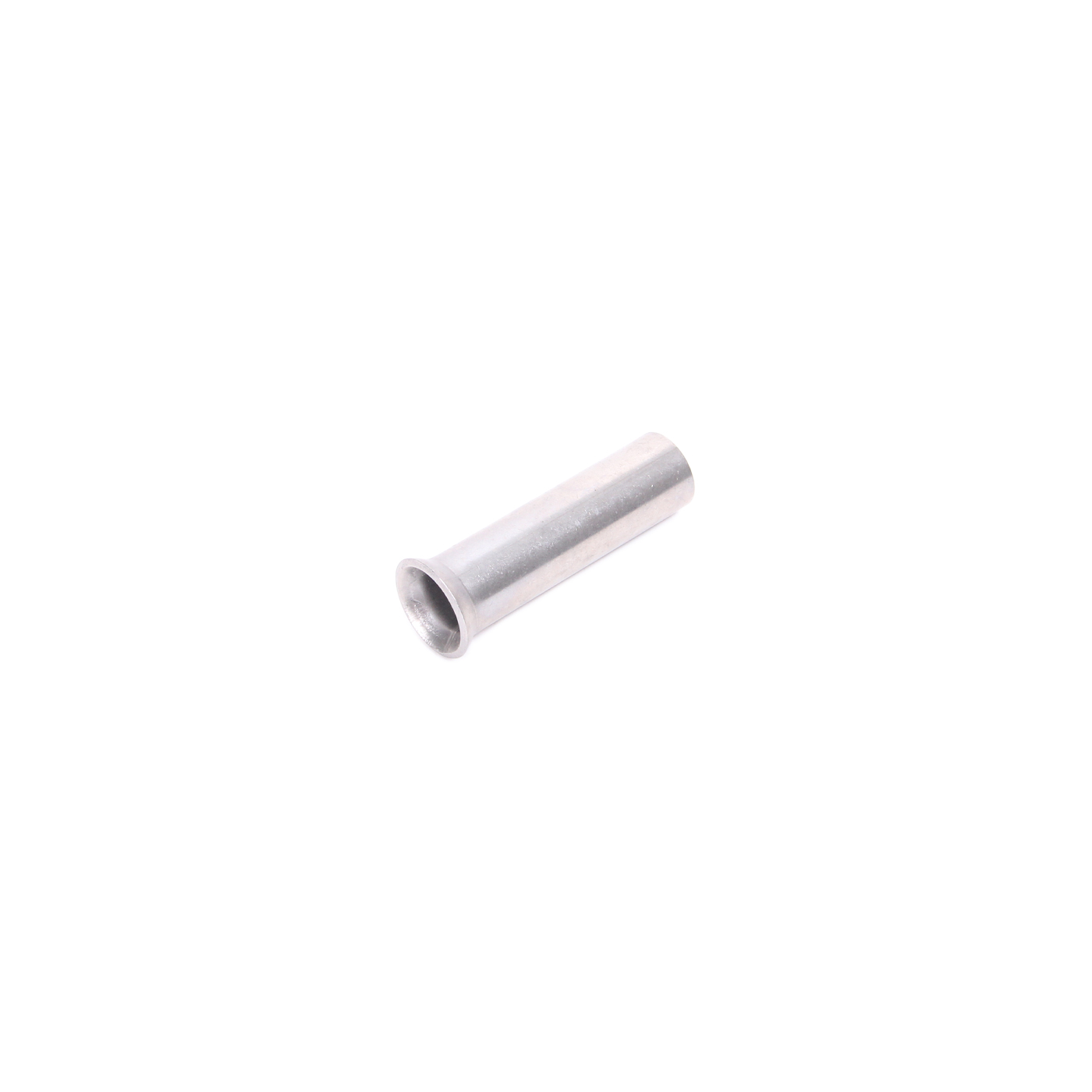

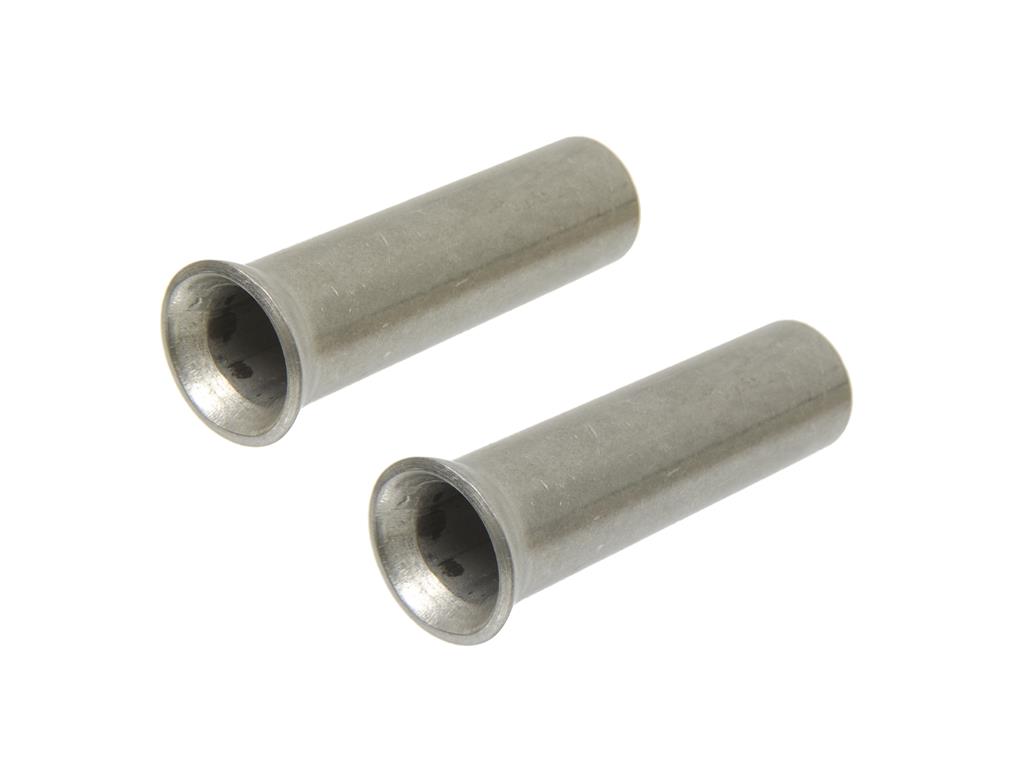

1963-1982 Corvette trailing arm bushing installation sleeve. Manufactured from stainless steel. Sleeves were designed by GM to secure the rubber bushings into the front of the rear suspension trailing arm as it connects into the frame kick-up. Sold individually.
Note: Rubber trailing arm bushings will need to be installed using a shop press or the specially designed GM tool - the bushings require being compressed while the sleeve needs to be staked to secure installation.
(GM Part 3819806)
This item is proudly Made in the USA
Technical Articles:
Read Zip's technical article: 1963-1982 Corvette Trailing Arm, Strut Rod & Spring Mount Replacement and learn how to work on your Corvette.
Model Years
| Generation | C2, C3 |
|---|---|
| Model Year | 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982 |
Additional Item Information
- OE GM PART #: 3819806 *GM part # provided for lookup purposes only.
