63-82 Trailing Arm Bushing Sleeve (Steel)
Item #:
SU-823
$11.50
In Stock - - Ships Tomorrow
Related To This Item

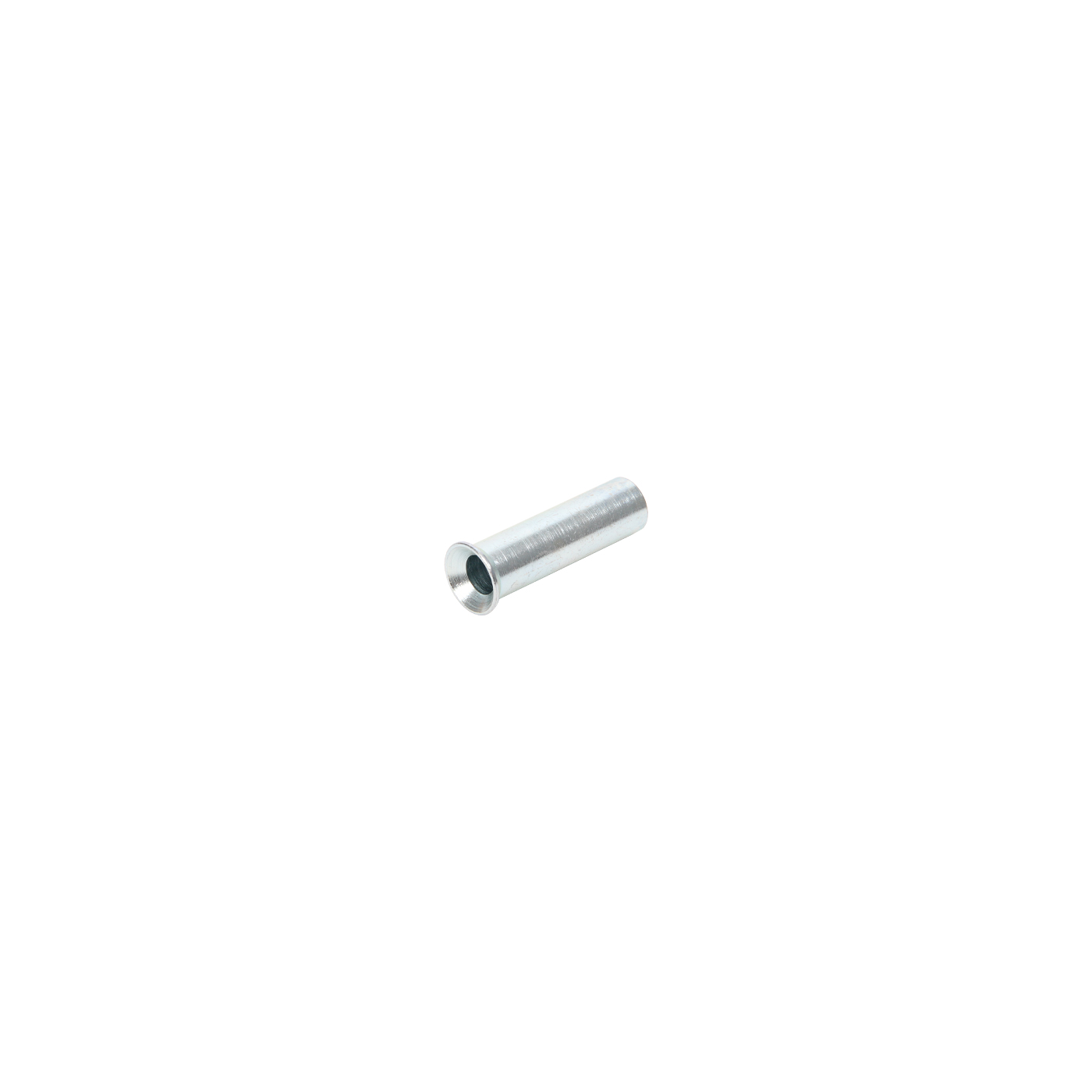

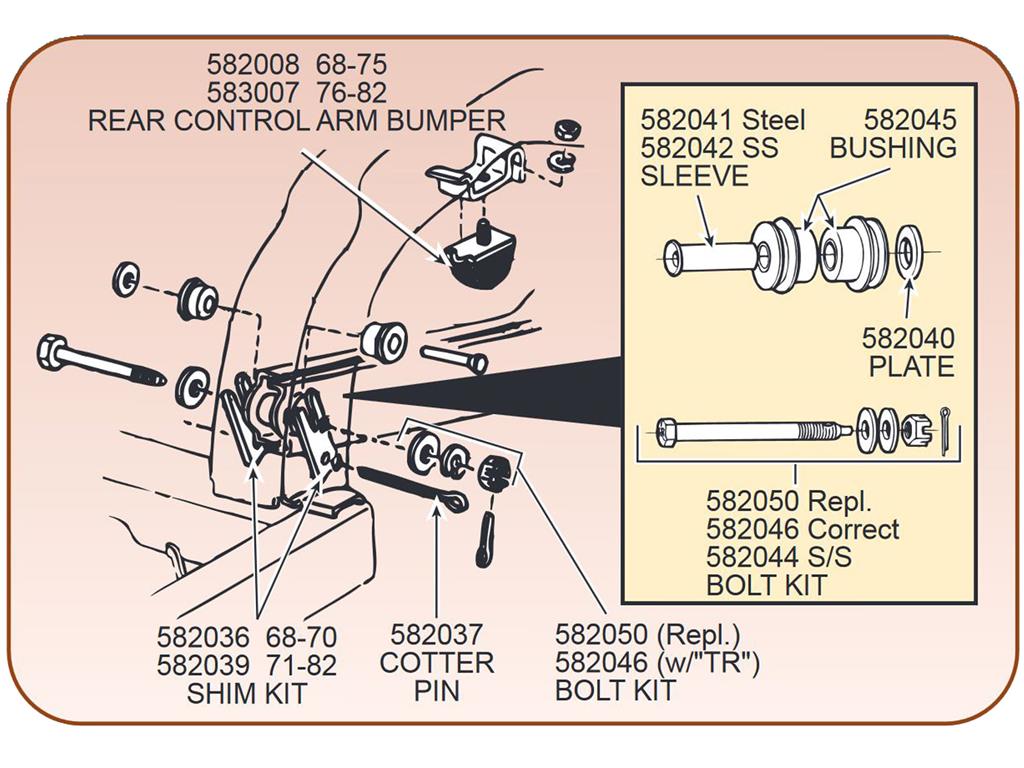

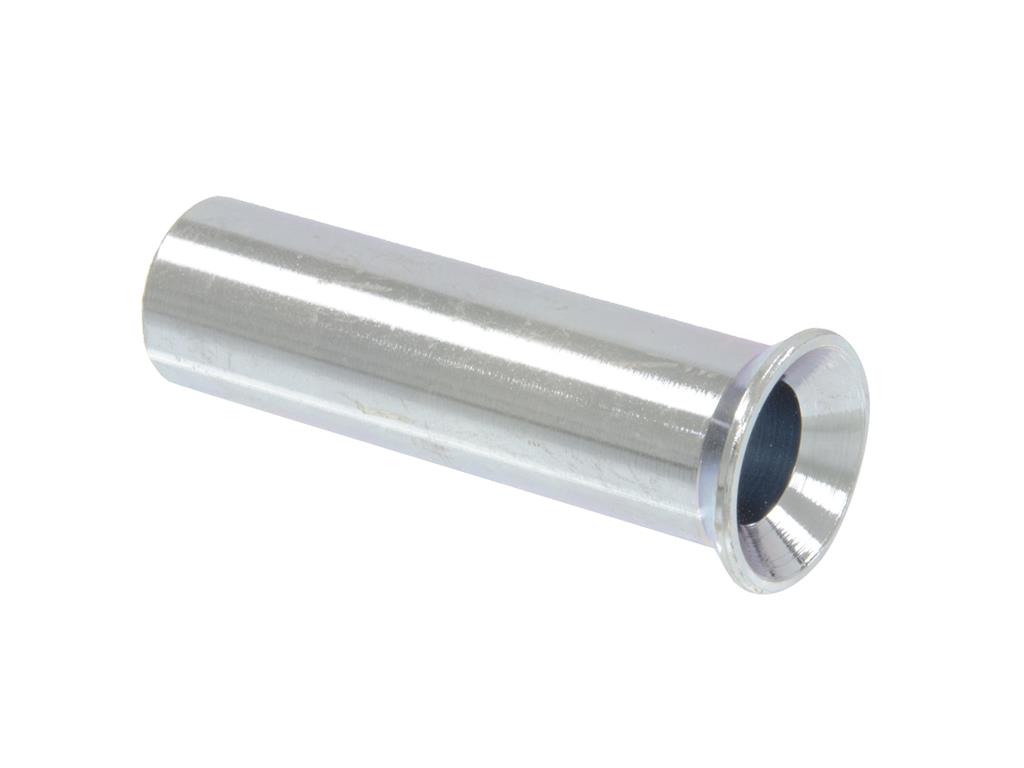

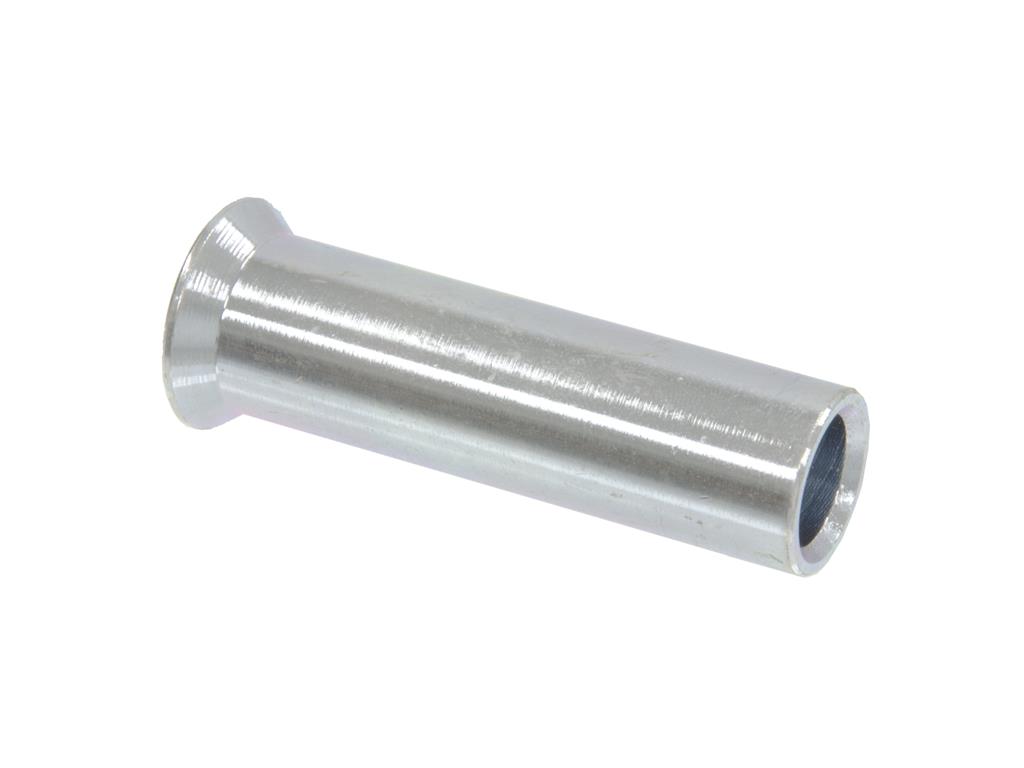

Original style 1963-1982 Corvette trailing arm bushing installation sleeve. Manufactured from steel as original. Sleeves were designed by GM to secure the rubber bushings into the front of the rear suspension trailing arm as it connects into the frame kick-up. Sold individually.
Note: Rubber trailing arm bushings will need to be installed using a shop press or the specially designed GM tool - the bushings require being compressed while the sleeve needs to be staked to secure installation.
(GM Part 3819806)
| Model Year | 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982 |
|---|---|
| Base Unit of Measure | EA |
| Search Description | C2 C3 CORVETTE BUSHINGS SLEEVES TUBES ARMS |
| Paragon Item No | 19040K |
| Net Weight | 0.100000 |
| GM Item No. | 3819806 |
